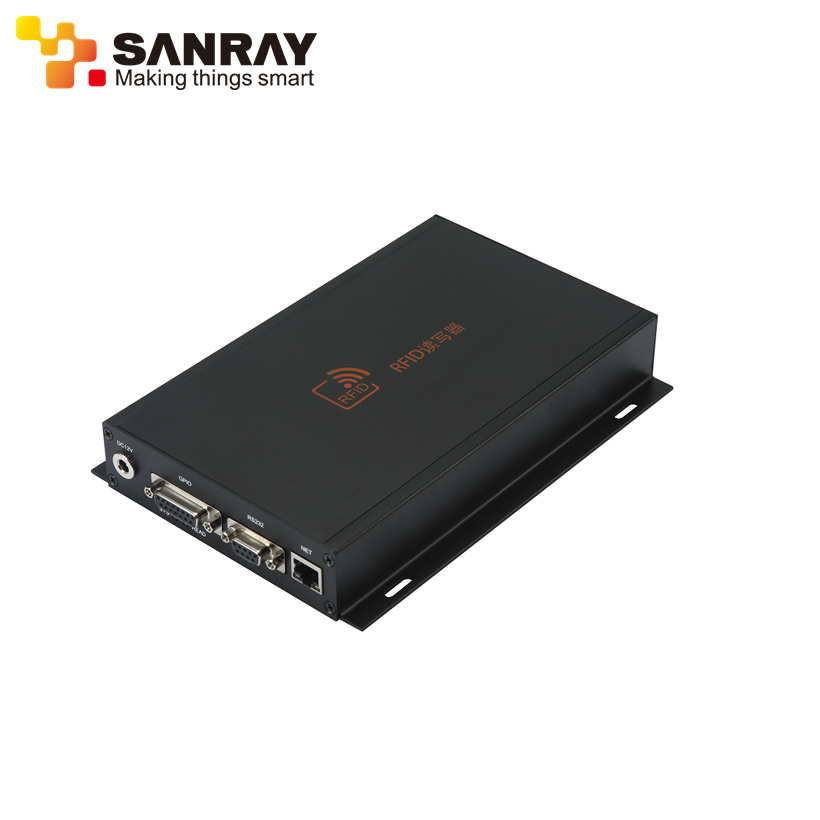

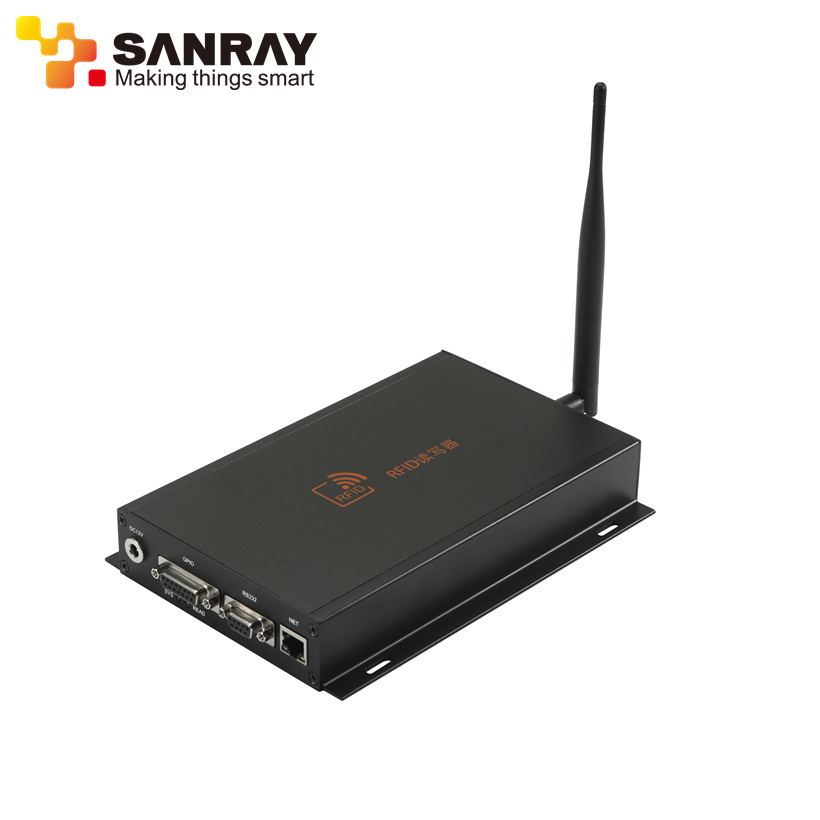

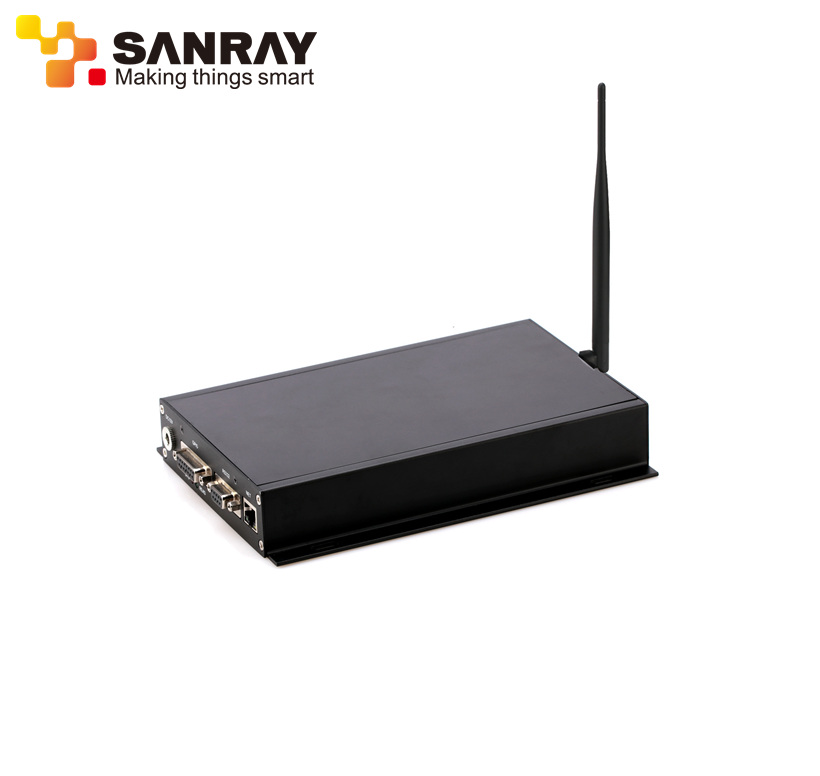

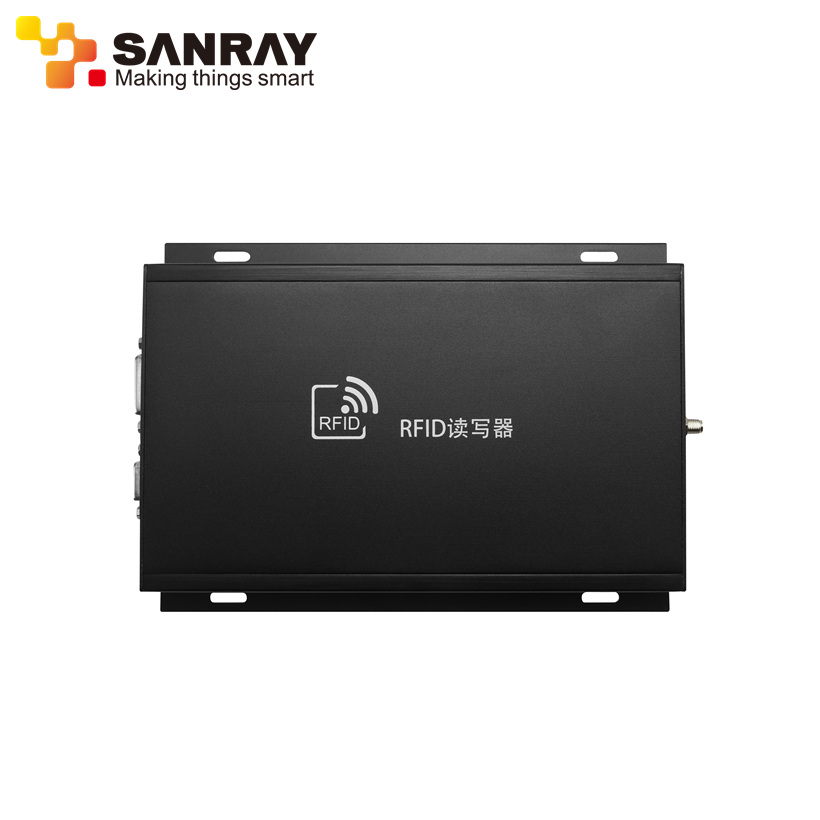

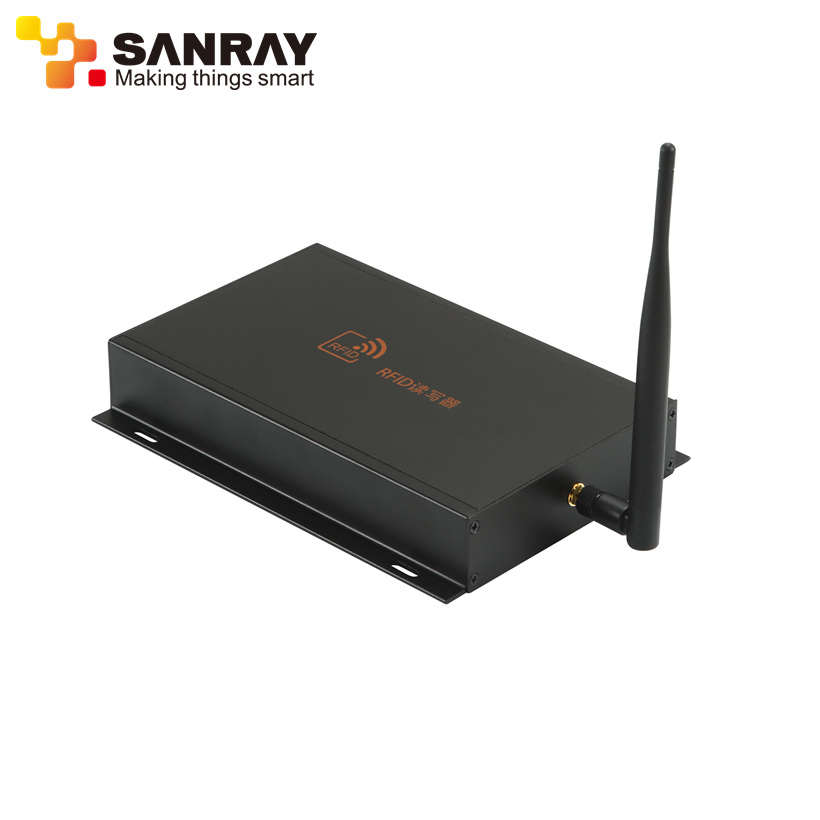

2.4GHz omni directional Active rfid Reader F2411

Operating frequency

2.4GHz~2.5GHz ISM

Antenna

Connect 1 antenna through SMA

RF power range

-30dBm~0.0dBm( adjusted by 32 grade )

Receiving sensitivity

-90.0dBm

Operating mode

Fixed frequency

Modulation

GFSK

Reading range

0~100m (depend on different gain omni-directional antenna,)
RSSI active reader can be adjusted less than 10m

Anti-collision

Up to 1000 tags read simultaneously

Communication speed

250kbps, 1Mbps, 2Mbps(adjustable)

Communication interface

RS-232, RS-485,  Wiegand26/34/42/50, Ethernet

Input and output

2 input, 2 output

Power supply

AC input: 100~240V, 50/60Hz 1.2A
DC output: 5V/1A

Product size

208mm×125mm×35mm(L×W×H)

Gross weight

0.79kg

Net weight

0.75kg

Working temperature

-20℃~+70℃

Storage temperature

-40℃~+85℃

Accessories

Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable

Working status indication

Buzzer, LED indicator
