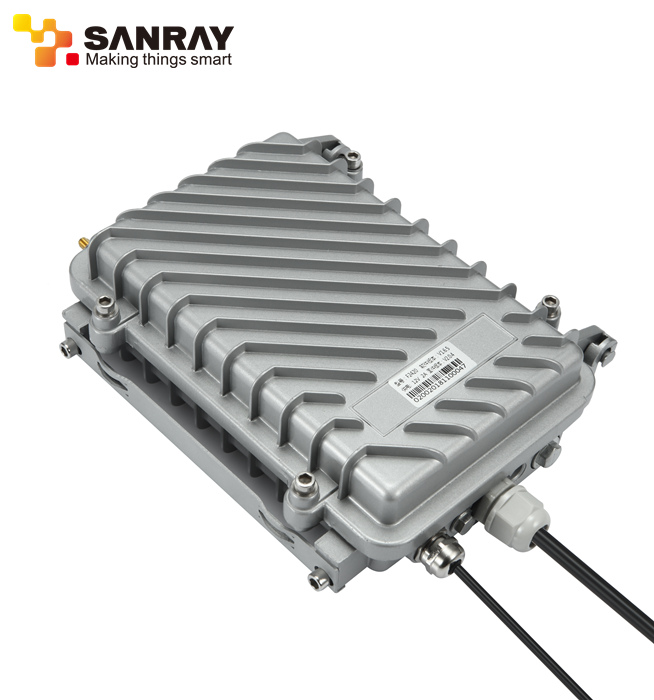

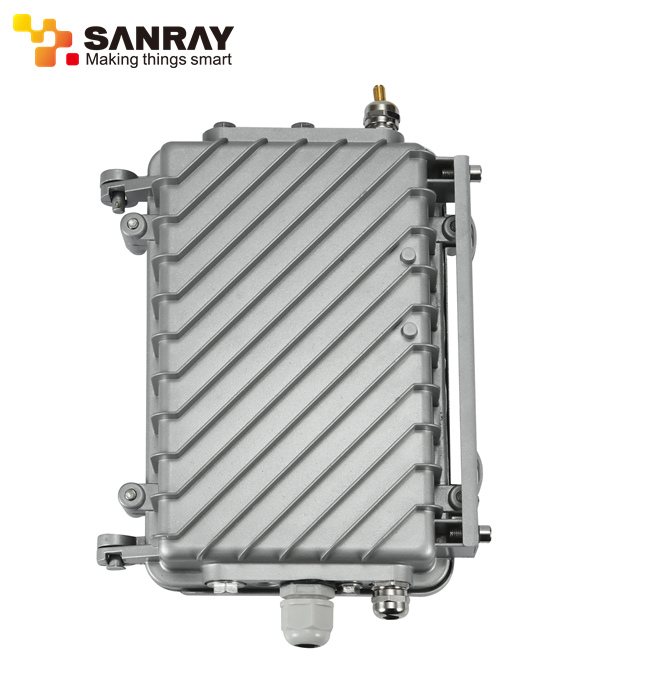

IP68 2.4G Active Omni directional RFID Reader F2420

This 2.45GHz RFID active reader F2420 is designed for School Attendance System/asset tracking. With its long read up to 100 meters, Waterproof IP68.

this active RFID reader is perfectly used in enterprise supply chain management to improve the efficiency of asset tracking and management.

Working frequency: ISM 2.4GHz ~ 2.5GHz

Identify direction: Omni-directional or directional (antenna dependent)

Antenna: Connect 1 antenna through SMA

Standard matched antenna: Omni-directional antenna

RF Power Range: -20 dBm ~ 0 dBm (set by software)

Receiving Sensitivity: -90 dBm

Modulation: GFSK

Read Mode

1) Automatic identifying within effective area (Auto mode)

2) Reading after external trigger (Trigger mode)

3) Reading under software command (Master-slave mode)

Identify Tag Time: Less than 1ms when identify single tag

Anti-collision: Read up to 500 pieces of tags simultaneously

Read distance: 0 ~ 100 m adjustable

For reader with RSSI function, the distance will be half the above distances

Buffer Capacity: 1000 tags data

Working Status Indication: Buzzer, LED indicator light

Communication Speed: 1000kbps

1 triggering input, 2 Relay output, CAN, RSSI

Data Port interface: RS232 Port, RS485 Port, USB Port, Weigand Port Weigand26/34/42/50, Ethernet

Power supply: DC+5V, 1A

Product size: 119 mm*100 mm*35 mm

Packing size: 300 mm*280 mm*90 mm

Gross weight: 900 g

Net weight: 250 g

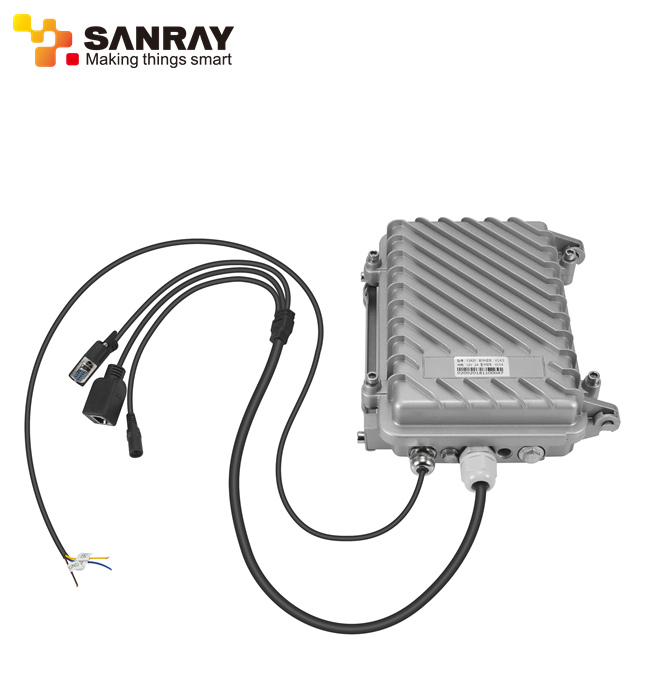

Accessories: Standard matched antenna, DC 5V/1A adapter, power cable, RS-232 cable, USB cable, Ethernet cable

Working temperature: -20 degree ~ 70 degree

Storage temperature: -40 degree ~ 85 degree
