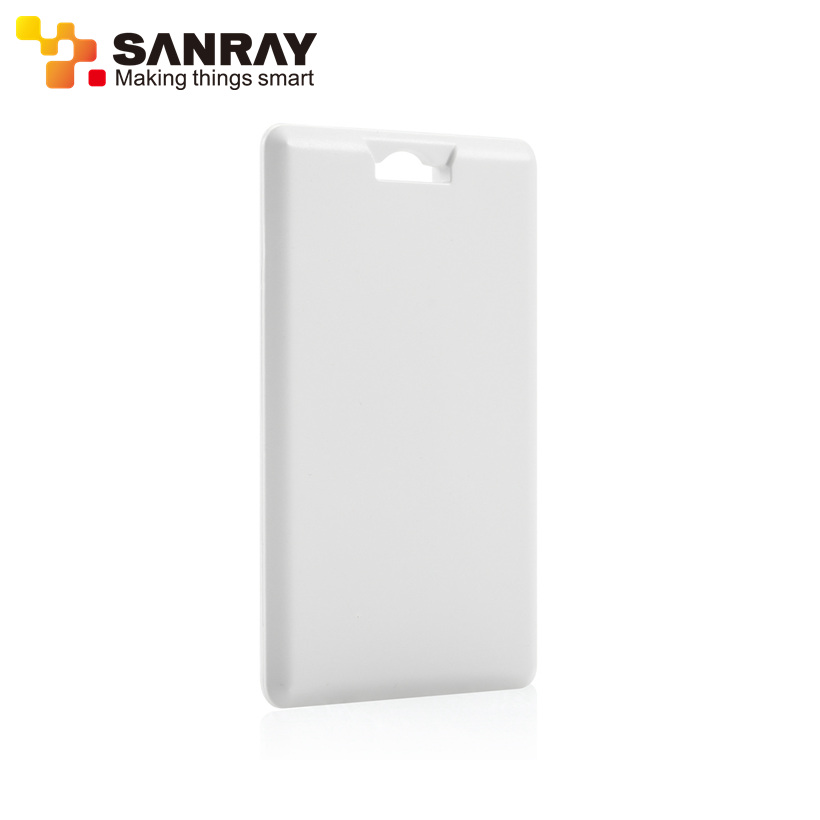

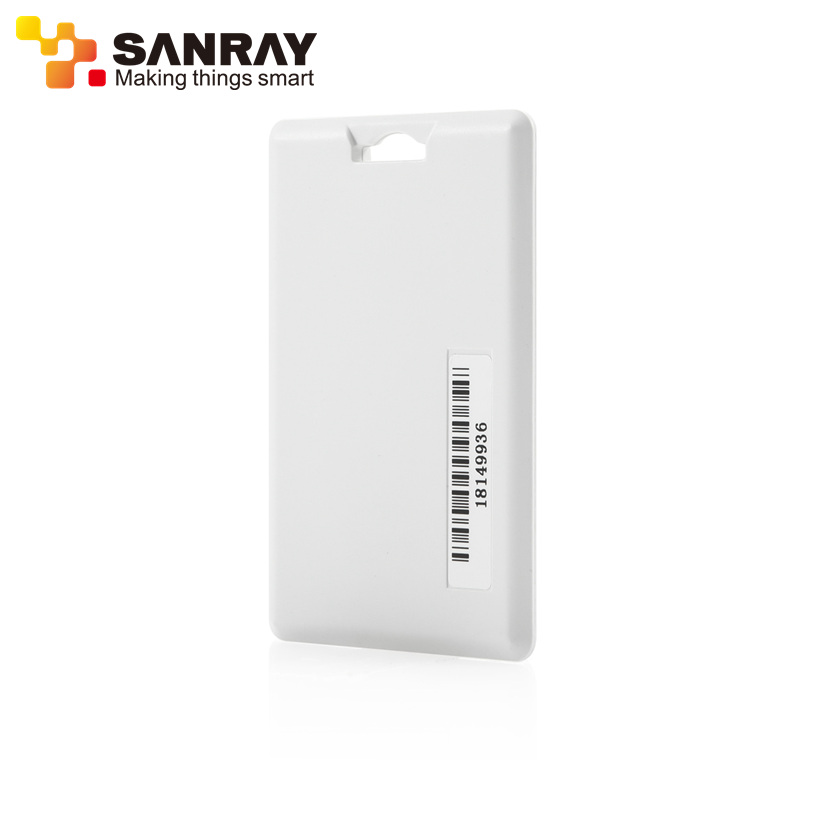

2.45GHz Active RFID Card Tags for workers and students attendance T2430

收藏
Product Details

T2430, the long rang 2.4G active tags have three years life warranty, and max up to 200M with 1000 tags/second performance, very ideal for school attendance and workers management.

Key Features of long range active rfid tag T2430

Long reading distance

Ultra  low  RF  power  consumption,  long life time

Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable

High protection grade

Large user memory, which can be used for many flexible applications

Intelligent  temperature  monitoring function

Support RSSI function


Product Feature

1.Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;

2.Effective reading range up to 80m (depend on reader and antenna, software configurable);

3.Super wide working band design, conforming to relevant industry rules and also flexible in application development;

4.Multi-Tag reading at the same time (more than 50pcs per second), no limitation or interference by tag quantity in the reading range.





Parameters

Mainly Performance Parameter:

Name

2.45GHz RSSI UHF RFID active tag

Frequency

2.4GHz~2.48 GHz ISM

RF Power

-30.0dBm~7.0dBm

Reading distance

 0~200m(depends on antenna)

Operating current

<20 mA, 3V

Modulation

GFSK

Communication rate

1M bps

ID No.

12 byte serial No.

Working temperature

 -20℃~+45℃

Storage temperature

-30℃~+65℃

Life time

Read only: 3 years (1500ms transmitting interval&1dbm RF power)

RSSI function

YES

Battery

Lithium battery  500mAh

Electric hint

alarm when low battery

Material

ABS(ROHS), flame retardant

Environmental sealing

IP67

Drop test

1.2m

Weight

20g

Dimension

87mm*56mm*5mm
