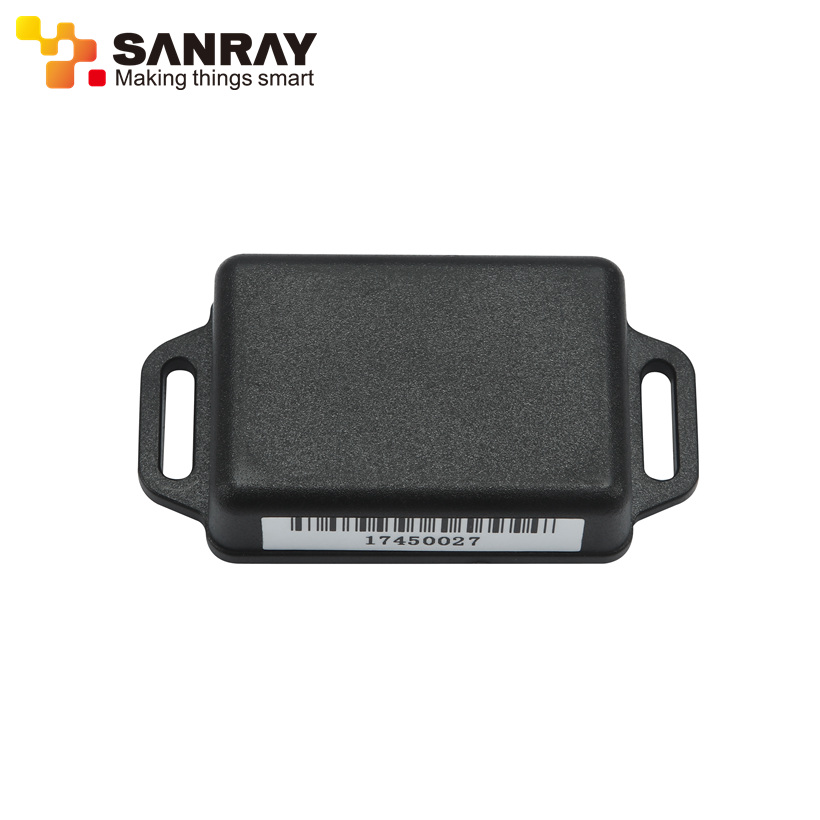

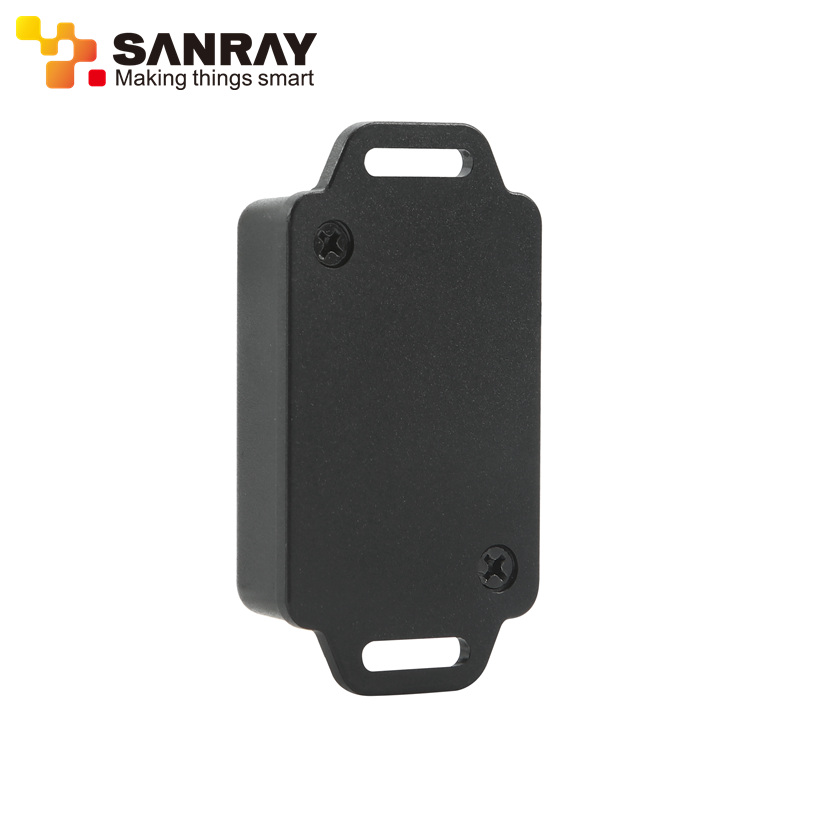

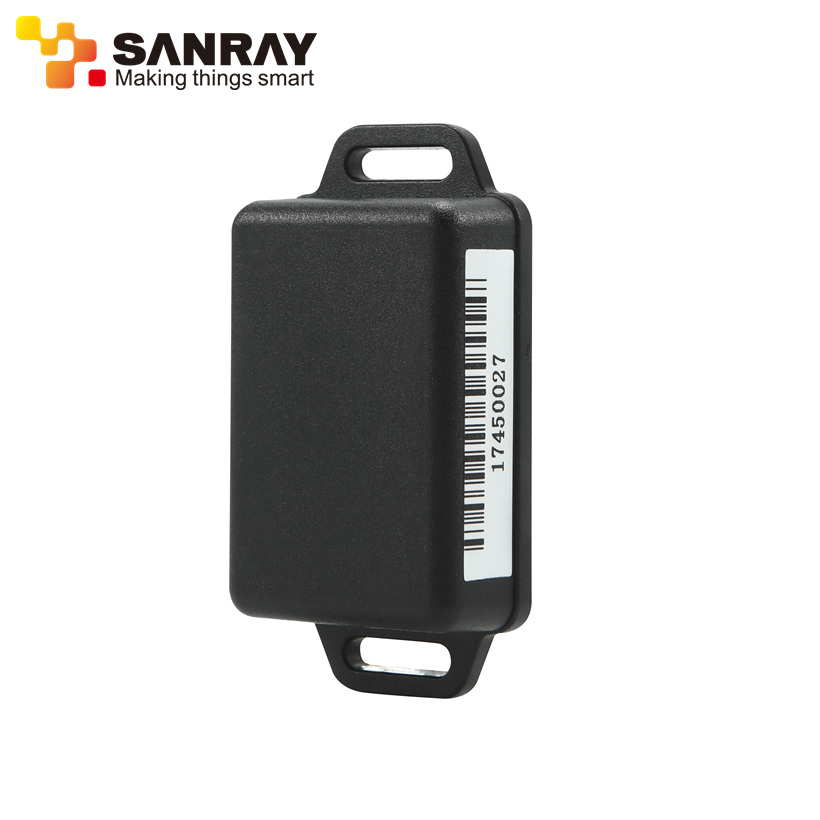

Active 2.4g Rfid Card tag for vehicle management T2431

收藏
Product Details

T2431, the long rang 2.4G active tags have three years life warranty, and max up to 200M with 1000 tags/second performance, very ideal for vehicle and parking lot management.


Typical Applications:
Cold chain logistic
Temperature monitoring and collecting
School student’s management
Vehicle and asset tracking
Mainly Performance Parameter:




Parameters
Name2.45GHz RSSI UHF RFID active tag
Frequency2.4GHz~2.48 GHz ISM
RF Power-30.0dBm~7.0dBm
Reading distance0~200m(depends on antenna)
Operating current<20 mA, 3V
ModulationGFSK
Communication rate1M bps
ID No.12 byte serial No.
Working temperature-20℃~+45℃
Storage temperature-30℃~+65℃
Life timeRead only: 5 years (1500ms transmitting interval&
1dbm RF power)
RSSI functionYES
BatteryLithium battery 500mAh
Electric hintalarm when low battery
MaterialABS(ROHS), flame retardant
Environmental sealingIP67
Drop test1.2m
Weight20g
Dimension50mm*30mm*15mm
