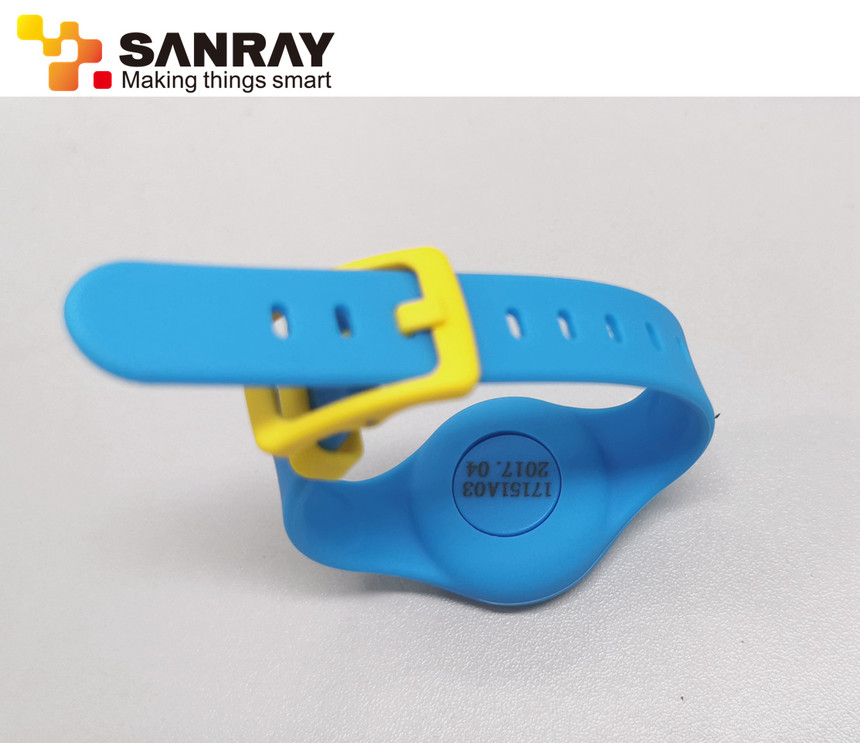

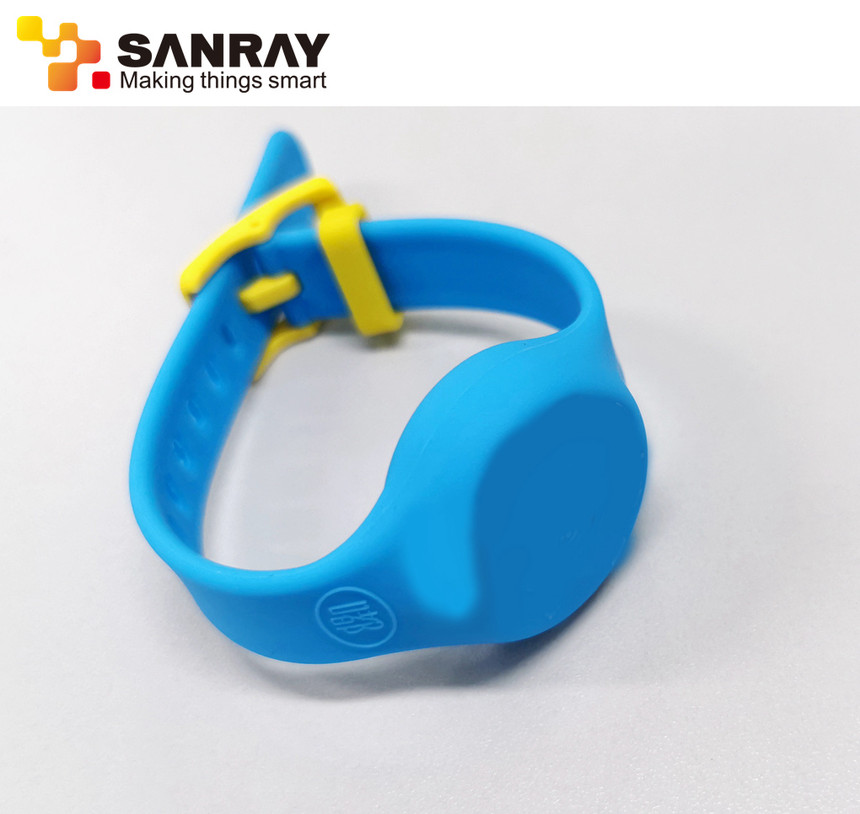

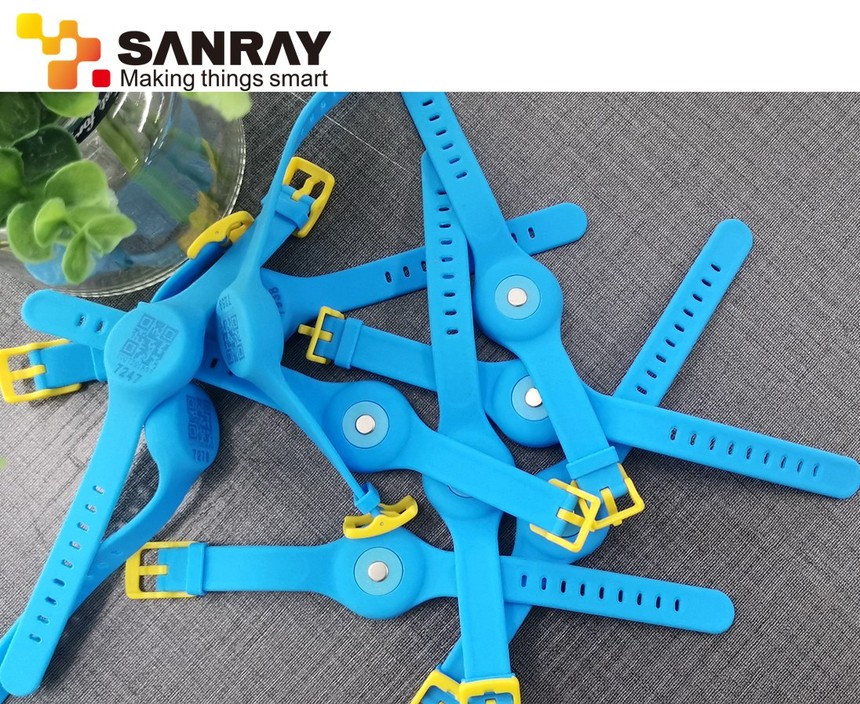

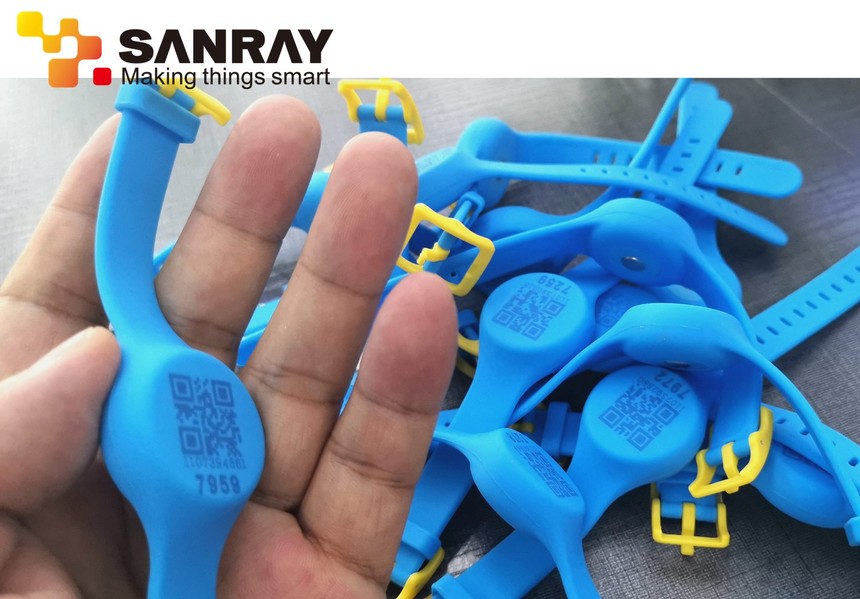

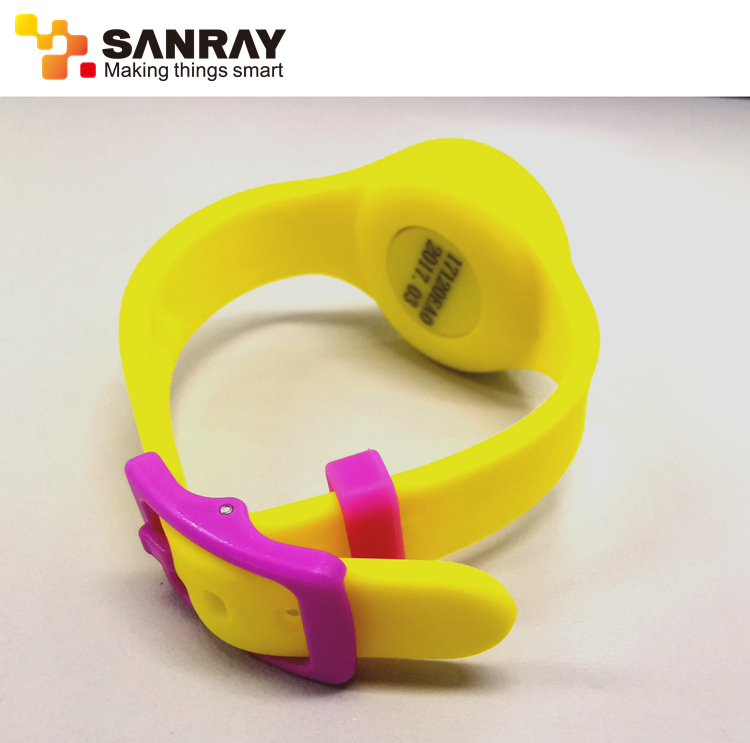

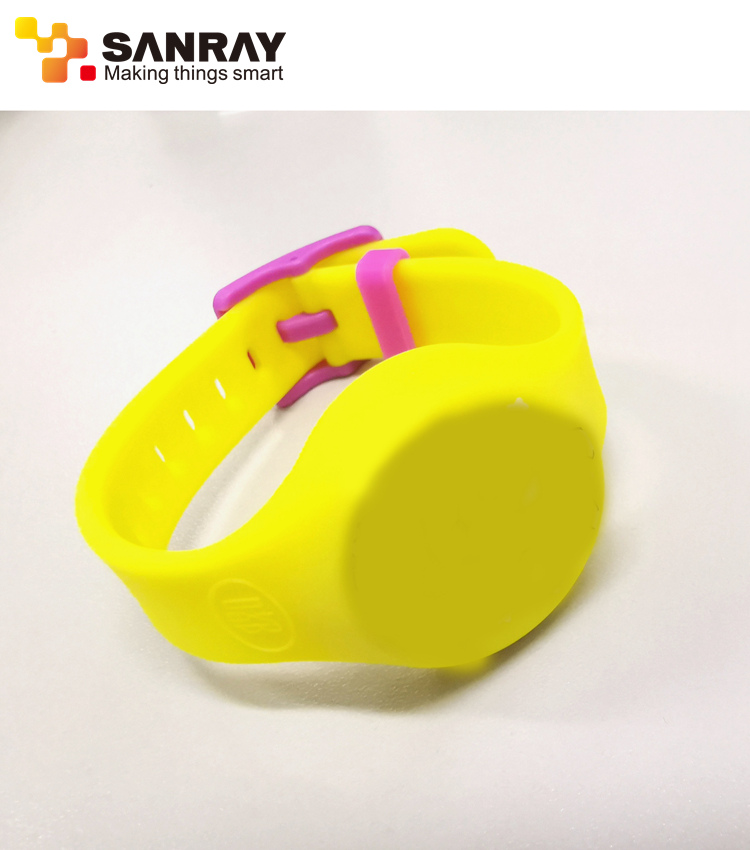

temperature Monitor Active RFID 2.4G Silicon Wristband W3320

收藏
Product Details

W3320, the 2.45GHZ Waterproof Silicone Active Rfid Wristbands are specially designed for students, workers, patients and relative people positioning purpose, and temperature monitor function.


Student attendance system Waterproof 2.4g long range active RFID tags

Introduction:

Active RFID 2.4G Student Attendance Silicon Wristband is a long-distance electronic tag, that is, an electronic tag designed to locate people or items. The electronic tag periodically broadcasts the tag ID information to the outside wirelessly. The tag reader can not only receive the ID information of nearby tags, but also calculate the distance between the tag and the card reader according to the field strength of the wireless signal. Through the comprehensive analysis of the data received by multiple card readers, the specific location of the tag can be obtained.

Wearing Active RFID 2.4G Student Attendance Silicon Wristband on personnel can realize dynamic and real-time attendance to personnel. The product can be used in conjunction with a handheld card reader to easily find items and name rolls. It is widely used in club management, library, student school, consumption management, time management, dinner management and swimming pool management.


Application:

1. Regional tracking management

2. Student Attendance System

3. Commodity flow control and tracking management





Parameters

Specification

ModelW3320
Type2.4G Card type (type, MAX RF power)
Inductive modeInitiative transmit, RF Power-6dBm transmit every second
MaterialABS, silicon heat resistant ,multicolors
Dimension86*55*5mm(customization)
Batterybattery life up to 3 years
IP GradeIP54
InstallationCarry on
Signal modulationGFSK
Communication speed1Mbit/s
Receiver sensitivity
-85dbm
Operation frequency2.44GHz
Output power-6dbm
Quiescent current< 3uA
Peak current< 15mA
Average current3 years
Operating temperature

-20℃~+45℃

Storage temperature

-30℃~+65℃

Operating humidity

<85%
