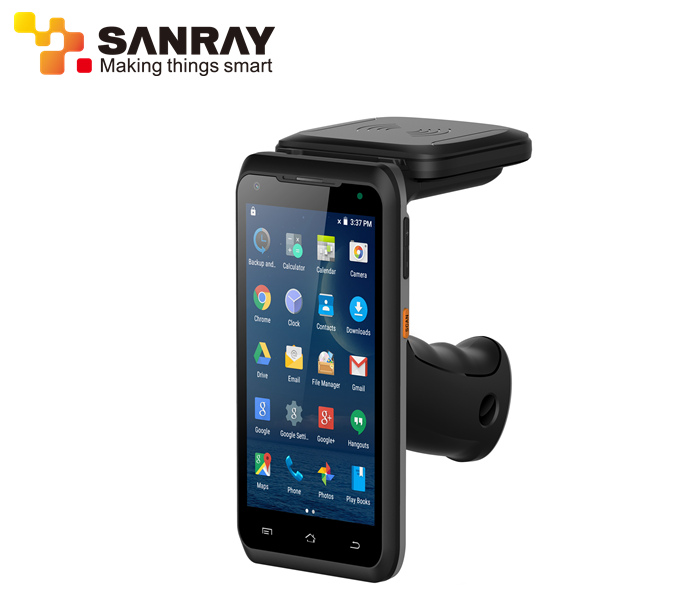

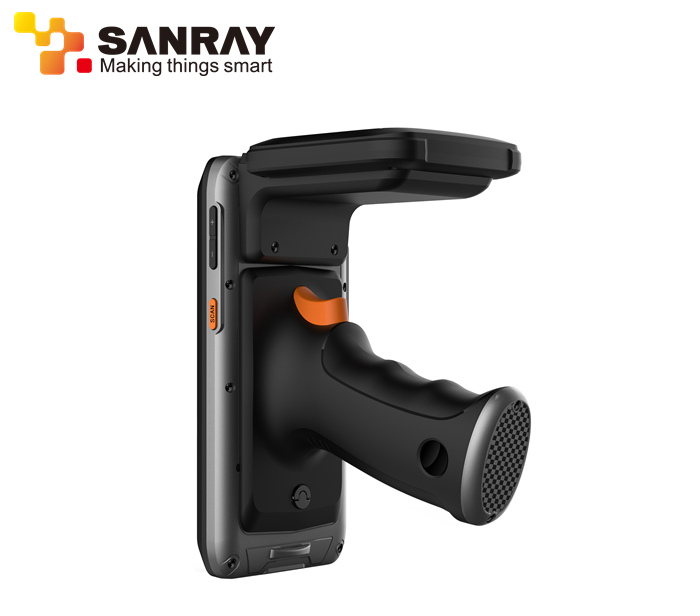

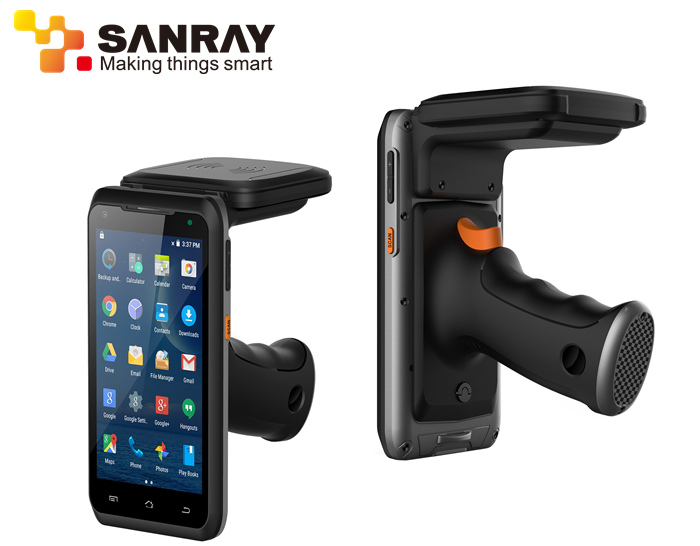

Industrial Grade Passive UHF RFID Handheld Reader P6020

Product Details

12M Strong ability to read and write: built-in IMPINJ R2000 RFID module;it has a stronger ability to resist conflict;

Multiple optional: 1D laser barcode scan, 2D barcode scan, LF/HF RFID Reader

Applications

1. Logistics management

2. Medical Treatment

3. Electrical Power

4. Purchasing Fair

5. Personal access control 6. Warehouse assets inventory

Parameters


CPU		MTK OCTA 2GHz
Operating system		Android 8.1
Memory	memory	RAM：DDR4 2GB（optional 4GB) NandFlash：16GB（optional 64GB)
	Extend memory	MicroSD/TFcard slot(Max up to 128G)
Display		5.5 inch QVGA imitative glass durable touch screen, 720X1440 pixel, 350cd/㎡
keyboard		5 keys, 3 touch function key
battery		3.8V 6000mAh Rechargeable Li-polymer Battery

weight		700g
camera		13MP, front camera 5MP（optional）, automatic focusing
slot		Micro SD（TF）card slot * 1, Micro SIM card slot * 1， PSAM card slot * 2
Light		Battery light * 2
interface		Type-C * 1, cradle charger interface
Audio		Speaker * 1, Microphone 1, headphone 1
Phone function		Support HD voice mobile call
Vibrating alert		support
compass		support
Audio decibel		Louderspeaker 90dB
Data Collector Specification
UHF RFID		10 meters distance for UHF reader（external UHF)
WiFi		IEEE 802.11a/b/g/n/ac, support 2.4GHz, 5.0GHz
Bluetooth		Bluetooth 4.1
GPS		Support GPS, Beidou
Wireless communication		FDD-LTE
Operating Environment
Operating Temperature		-20°C~+55°C
Storage Temperature		-40°C~+80°C
Environment Humidity		5%RH ~ 95%RH (no condensation
IP rate		IP66, 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
accessories		Type C charging cable * 1, battery * 1.
