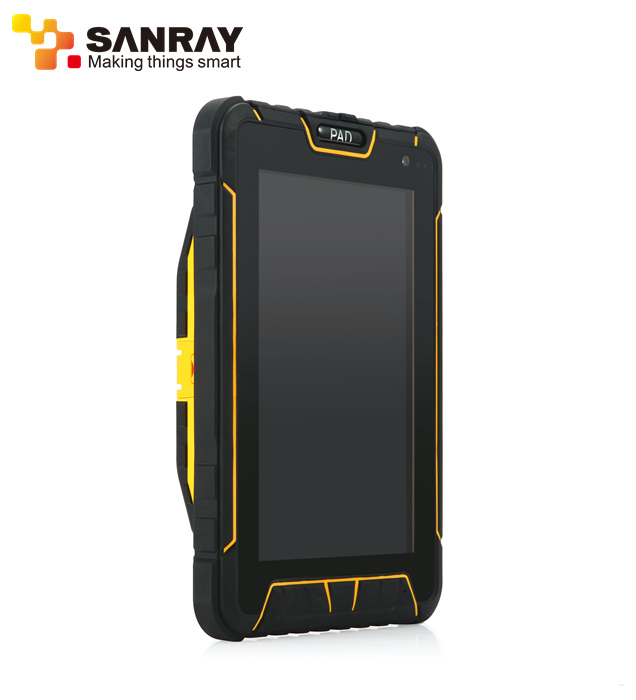

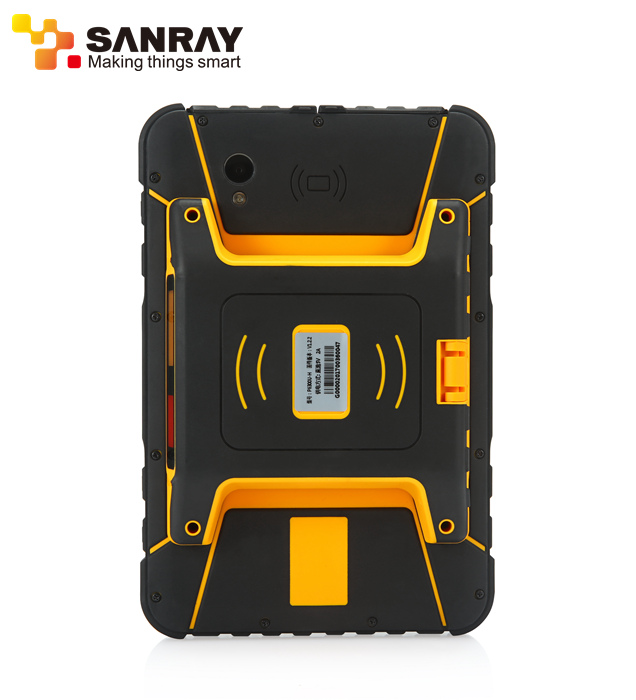

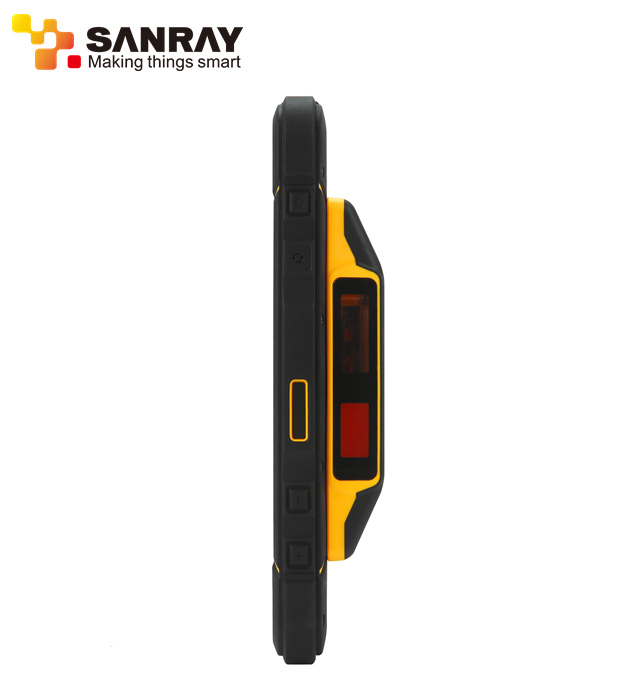

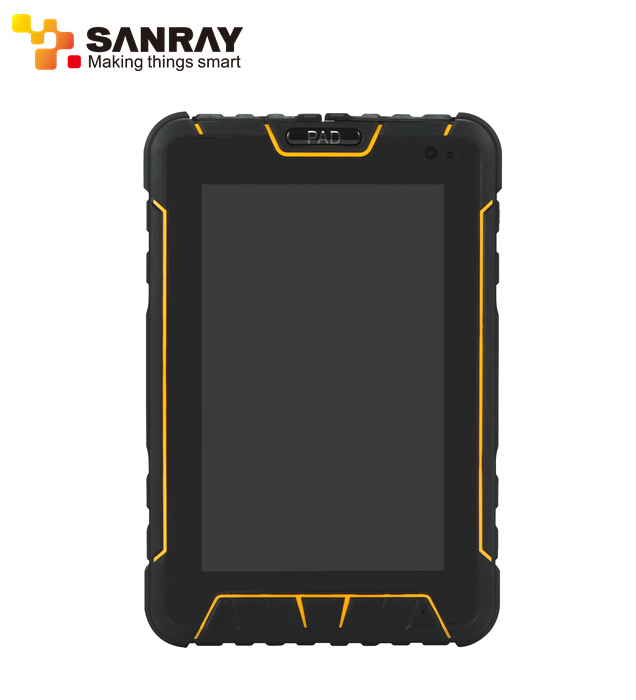

Android passive uhf rfid Tablet Handheld Scanner P6300

收藏
Product Details

P6300 uhf RFID is three-in-one tablets, adopts the design of waterproof, dust proof, put down, and With advanced uhf RFID radio frequency module, read and write distance up to 12 meters.In geography, logistics, Lin Industry, public transportation, construction, maintenance, mining, military and security, has special operation and working outdoors.

1. Adopt high-performance UHF RFID chips, read and write distance up to 3 meters.

2. With high stability;

3. The protection grade could reach IP67

4. The large capacity battery, long run.

5. 1.8 meters fall protection.

6. Touch screen: full toughened capacitive touch screen surface hardness greater than 8 h, 400 CD/M2 brightness visible in the sunlight.





Parameters

Product Technical parameter

Size

209*139*20mm£¨L¡ÁW¡ÁH£©

Weight(g) :

590g

CPU

QualcommMSM8916, A53, 4 core CPU, 1.2GHz

Built-in storage

2 GB RAM + 16 GB Flash

2G/3G/4G ROM 16G-W

FDD-LTE/TDD-LTE/WCDMA/GSM

FDD-LTE:1800/2100/2600  B1/B3/B7

TDD-LTE:B38/B39/B40/B41

B38:2570-2620MHz

B39:1880-1920MHz

B40:2300-2400MHz

B41:2555-2575MHz

    2575-2635MHz

    2635-2655MHz

WCDMA: 850/1900/2100   B1/B2/B5

GSM :   900/1800/1900   B2/B3/B8

2G/3G/4G

CDMA 1X/EVDO BC0

GSM 850/900/1800MHZ

WCDMA B1/B5/B8

TD-SCDMA B34/B39

FDD-LTE:B1/B3/B7

TD-LTE£ºB38/B39/B40/B4

Phone SIM card interface:

support,common1.8/3.3V SIM card

OS

Android 6.1

Navigation and positioning built-in

GPS Satellite-navigation chips, support A-GPS,EPO

RFID

Support functions of uhf RFID, read range up to 5m

OTG

Support

FM radio

Support

Bluetooth

BT4.0 (A2DP+EDR)

Motion sensor

Support

Gravity sensor

Support

Geomagnetic sensor

Support

Gyro Sensor

Support

Trumpet

20x30 Membrane type speaker unit

Network connections

3G/4G

Communication

WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+

11.5Mbps), support WIFI route sharing

EDGE :

Support

GPRS

Support

WAP

Support

WI-FI

Support

Main display

7.0¡±hd IPS/AFFS display 1024 * 600 600 CD/m2 visual highlight the sun.

Touch screen

G + G 5 full toughened high strength capacitance touch screen

Main camera

5 million pixels with af and electronic flash

Deputy camera

2 million megapixel camera

External memory expansion

Micro SD card (T - FLASH card) card reader, maximum support 64 GB extension

Battery

7200 mAh

Charging interface

USB Micro 5 pin

Data interface

USB Micro 5 pin

Headphone jack

3.5 mm

Language

English, Spanish, Portuguese (Brazil), Portuguese (podcast), Italian, German, Dutch, French, Polish, Romanian, Turkish, the Russian, Arabic, Indonesian, Malay,Thai, Vietnamese, Hindi, Hebrew, Simplified Chinese

Color

yellow sun, army green, metallic grey

Shock resistant

1-19 Hz / 1-1.0 mm 19-200 Hz / 1.0 g acceleration amplitude

Shock resistance

Meet MIL - STD - 810 - g/Method516.6 / Procedure military protection grade IV

Waterproof grade

6 class

Dust proof grade

6 class

Reliability

MTBF > 50000 h; MTTR < 0.5 h

Working temperature

- 20 ¡ã C to + 65 ¡ã C

Storage temperature

- 40 ¡ã C to +80 ¡ã C

Relative humidity

5% to 95%

Working height

maximum working height: 4500 meters (15000 feet)
