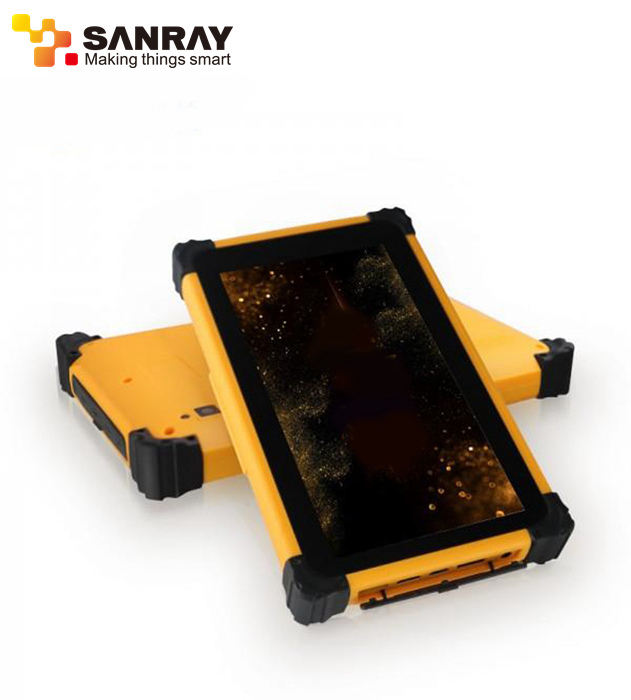

Android UHF RFID reader Tablet with Barcode Scanner PDA P6500

Item Number

P6500

Smartphone Specification Parameter:

Processor

ARM Cortex A7 1.3GHZ Dual Core

Operating System

Android OS v7.0

Memory Capacity

2G LPDDR2 RAM+16G EMMC ROM

Memory interface

TF plug(Micro SD card) support 2G-32G

Screen

5 inch IPS Screen, Resolution 1280*720, HD, Visible in Sunshine, Support Capacitive Multi-Touc, 5 point touch and 3 point can support

GPRS(standard)

GSM/WCDMA/FDD/TDS/TDD;GSM 4 frequency band,TDS B34/39,WCDMA B1/2/5/8,TDD B38/39/40,FDD B1/3/7/8/20

Wi-Fi(standard)

Support 802.11a/b/g/n model,support WEP\WPA\WPA2-PSK\AES\WAPI PSK\802.1x EAP encryption protocol

Bluetooth(standard)

Bluetooth 4.0+EDR

GPS navigation

Built-in GPS global positioned system, support A-GPS; GPS+BDS,meter position

Camera (Optional)

Rear 8 MPx Camera With Flashlight, front 2 MPx Camera

RFID Module Spec. Parameter

Data Transportation

Micro USB2.0 plug,support OTG

RFID Module

HF(Optional),UHF(Optional)  ,2.4G(Optional)

Bar Code Module

1D (Optional), 2D (Optional)

Battery

4000mAh Li-Polymer Battery, Standby Time more than 150 Hours, Working Time more than 20 hours, AC charging adaptor (1A), able to working after 360 hours when the wireless communication is closed after full charged, charging time less than 4.5 hours

Accessory

Lithium Battery * 1, Charger * 1, USB Data Cable * 1, Case * 1,Case instruction * 1

RFID Parameter

HF Module

Working Frequency: 13.56MHz

Protocol

ISO14443A/B,ISO15693

Reading Distance

2~5cm(affected by tags)

UHF Module

Working Frequency: 860MHz~960MHz

Protocol

EPC C1 G2(ISO18000-6C)

Reading Distance

Over 3m (affected by tags)

Physical Parameter

Color

orange

Device Dimension

208×126×23 ± 2 mm

Environmental Parameter

Working Temperature

-25℃~65℃

Storage Temperature

-30℃~70℃

Storage Humidity

10%~90%RH, non-condensing

Protection Grade

IP65
