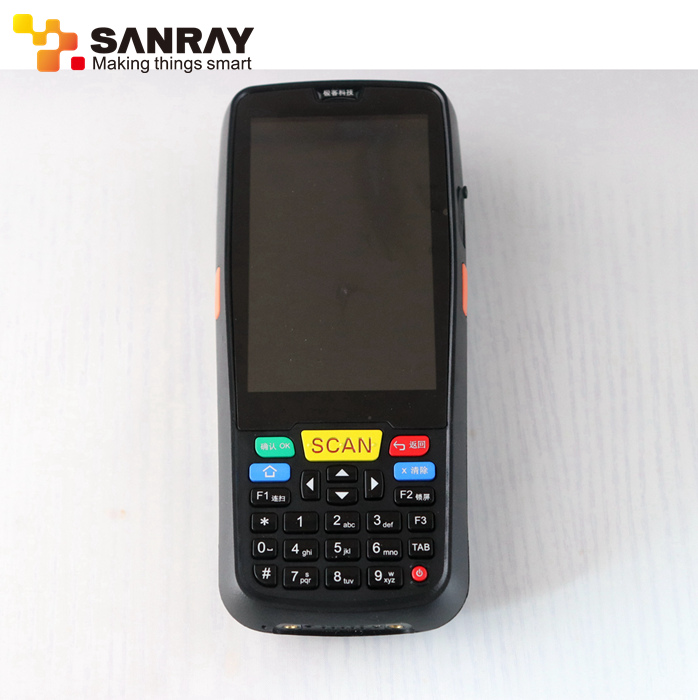

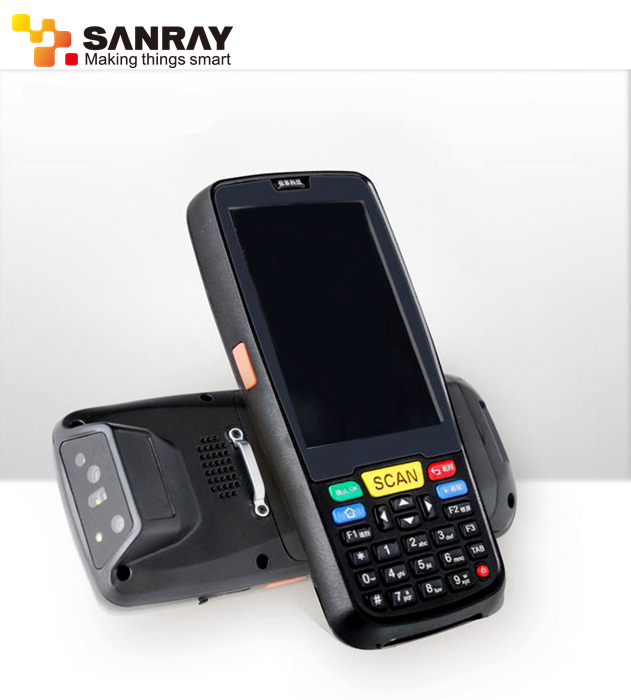

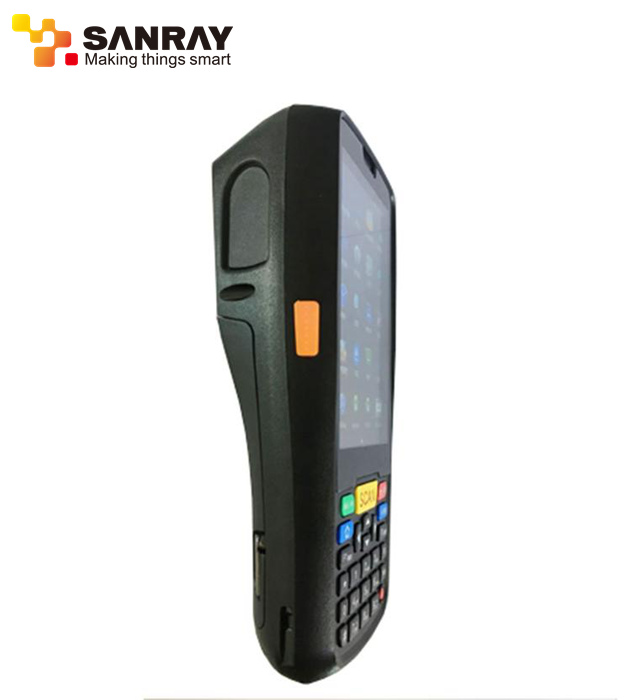

Android UHF RFID Handheld reader with 1D 2D Barcode scanner P6002
收藏
Product Details
P6002 as a new released handheld uhf rfid reader with Android 7.0 operating system applied, aircraft aluminum and super rugged nylon military level material adopted and industrial-class components deployed, It fulfills gather WiFi, Bluetooth, 3G/4G communication, GPS, 1D/2D barcode, UHF RFID together.
Rugged UHF HF Android PDA Handheld RFID Reader
SANRAY P6002H uhf RFID Reader is one high performance android industrial handheld reader, which is embedded SANRAY UHF RFID module, read and write distance up to 10 meter.
It can be used in areas such as geography, logistics, forestry, public transport, construction, maintenance, mining, military and safety, and special operations and outdoor operations. resistant to 1.2 meters naturally fall.
Parameters
Dimensions
166mm(L) X 73mm(W) X 30mm(D)
Weight
<500g
Display Screen
4 inch IPS 480* 800 px with Multi-point touch capactive screen
Expand Port
SIM card, micro SD (TF) Card
Communication Interface
USB2.0 Device
Input Mode
Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity
Rechargeable Li-polymer Battery 3.7V 5000mAh
Frequency
8ohm 1W speaker

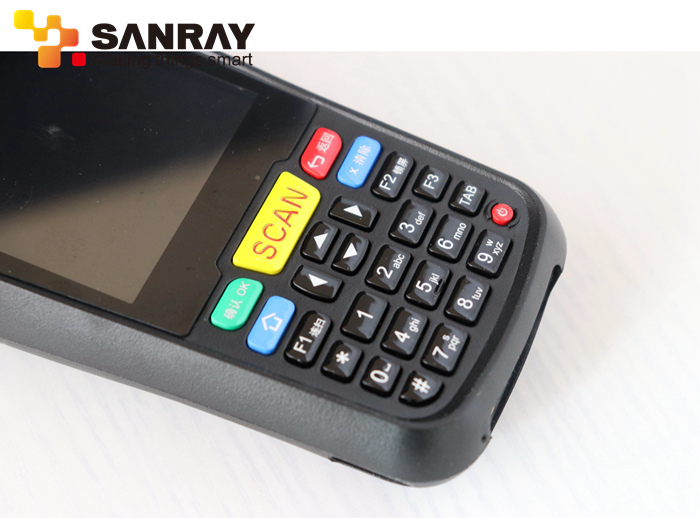

Key
13pcs soft silicon key
Performance Parameter
OS
Android 7.0
CPU
ARM CORTEX-A53 64bit Quad-Core 1.3G
RAM
2G RAM
Flash ROM
Standard 16G NAND Flash Storage
micro SD/TF port
(Max up to 32G)
Data Communication
WI-FI
Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover
FDD/TDD-LTE 4G
TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3)
WCDMA 3G
B1,B2,B5,B8
GSM 2G
GSM/edge/GPRS (850,900,1800,1900MHz)
bt
Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Standard Modules
Camera
8MP autofocus camera with flash
GPS
Support A-GPS
Operating Environment
Operating
-20°C to 50°C
Storage Temperature
-25°C to 70°C
Environment Humidity
5%RH-95%RH(no condensation)
Drop Specifications
6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications
1000 times/0.5m, roll on 6 sides contact area
Sealed Environment
IP65
1D Laser Scanner (OPTIONAL)
1D Laser Scanner
Symbol 955, HoneywellN4313,Mingde966
Resolution
4Mil minimum width
Ambient Light
10000ft.candles(107640 lux)
Scanning Speed
104(±)12/sec (bothway)
Scanning Angle
47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code Type
UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
2D CMOS (OPTIONAL)
CMOS Scanner
Honeywell N6603,NewLand 3096
The Sensor Resolution
752(level)×480(vertical)pels(gray level)
Ambient Light
All dark 9000ft.candles/96900 lux
focus element (VLD)
655nm ± 10nm
Support bar code type
PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
LF RFID Reader (Optional)
Frequency
125kHz, 134kHz (FDX-B / HDX)
Protocol
ISO11784/5, ISO18000-2
Range
3-8cm
HF RFID Reader (Optional)
Frequency
13.56MHz
Protocol
ISO14443A/B, ISO15693
Range
3-8cm
NFC Reader (Optional)
Frequency
13.56MHz
Protocol
ISO/IEC 18092 (ECMA 340)
Range
2-4cm
UHF RFID Reader (Optional)
Frequency (China)
865 - 868MHz / 920 - 925MHz
Frequency (America)
902 - 928MHz
Frequency (Europe)
865 - 868MHz (ETSI EN 302 208)
Frequency (Others)
Other countries for customisation
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Linear polarisation (1.8dBi) / Circular polarisation (2.5dBi)
