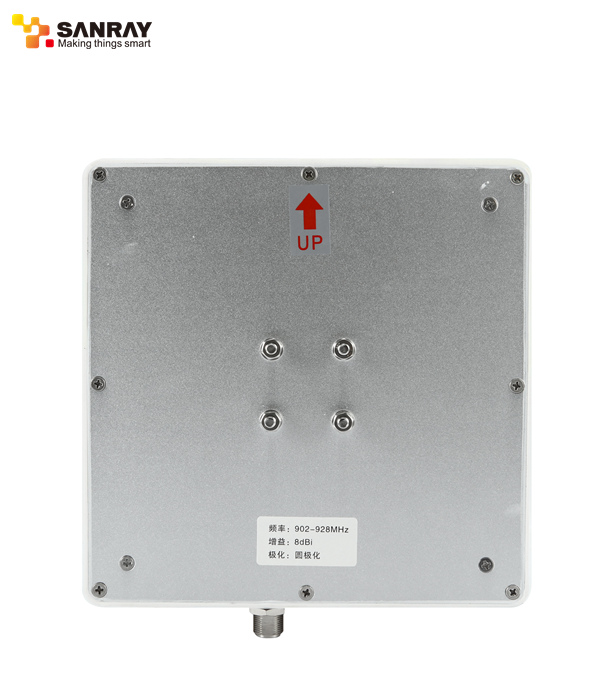

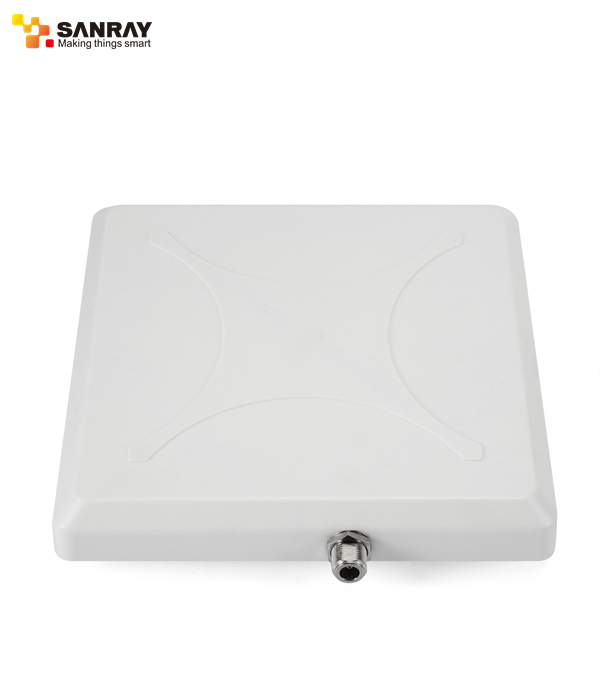

8dbi 9dbi Passive UHF RFID reader Antenna A4008

收藏
Product Details

Long distance range 8dbi 9dbi circular polarization passive UHF RFID reader antenna is designed for seperated UHF readers and modules, to achieve even good performance and easy to deploy.

The antennas can be connected with our serial UHF RFID readers, such as F5860, to realize the RFID function of data collection, which are widely used in various RFID systems.




Parameters

Main Parts Performance Parameters



Name

A4108

Working frequency

FCC ISM 902~928MHz or ETSI 865.6~867.6MHz

Gain

8dbi

Front-to-Rear Ratio

>25dB

polarization mode

circular polarization

Input Impedance(Ω)

50

VSWR

<1.5

power capacity(W)

500

Interface

N

Lightning protection

DC ground

Dimension

225*225*30

Weight

1kg

Radome Material

ABS/glass reinforced plastic

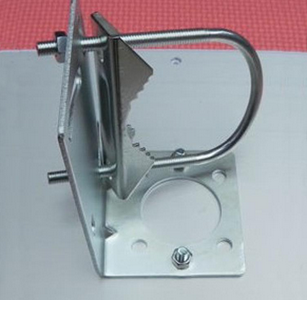

Weight of Mounting Kits

0.4kg
