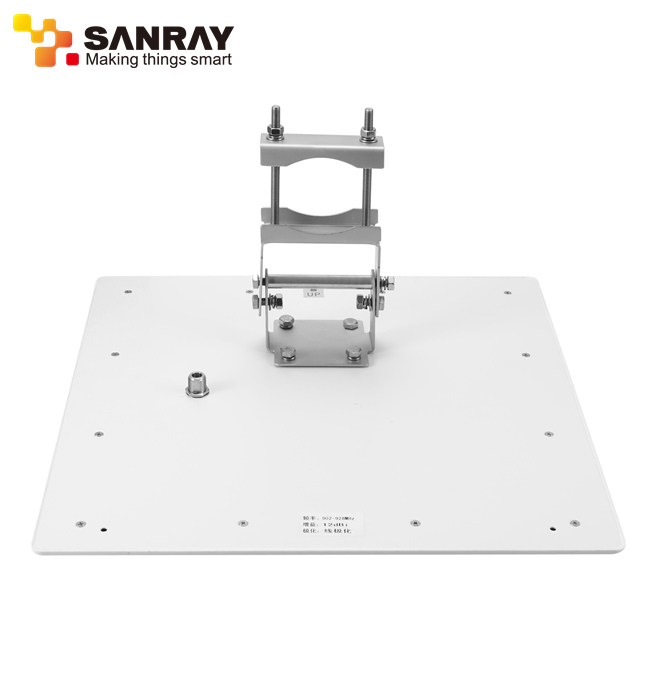

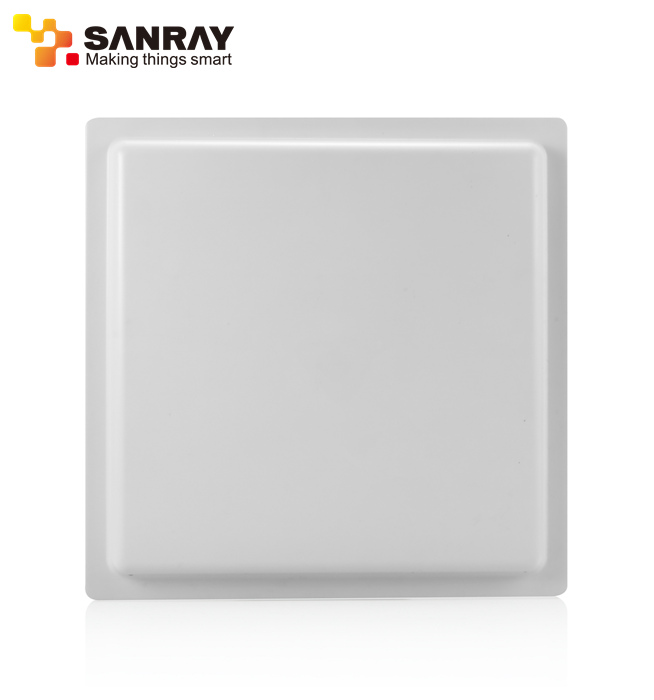

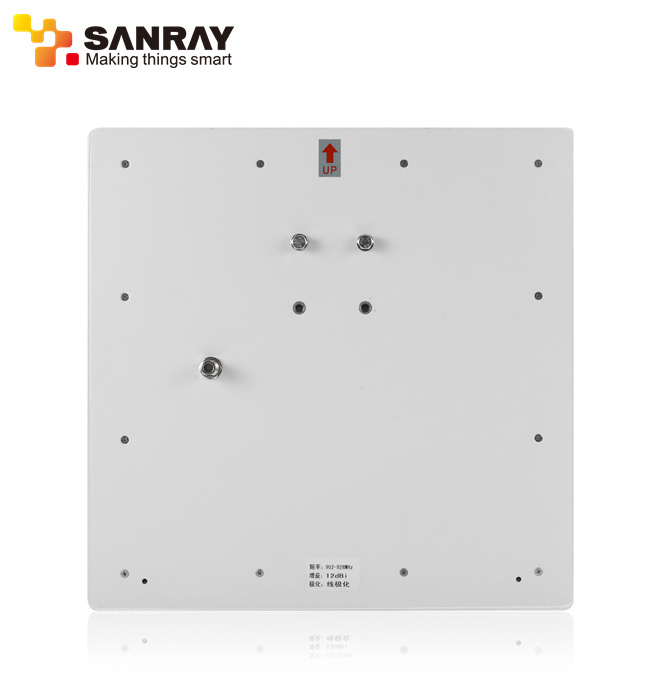

12dbi Passive UHF RFID reader Antenna A4112

收藏
Product Details

Long distance range 12dbi linear polarization passive UHF RFID reader antennais designed for seperated UHF readers and modules, to achieve even good performance and easy to deploy.


The antennas can be connected with our serial UHF RFID readers, such as F5860, F5003 to realize the RFID function of data collection, which are widely used in various RFID systems.



Parameters

Main Parts Performance Parameters

Name

A4112

Working frequency

FCC ISM 902~928MHz or ETSI 865.6~867.6MHz

Gain

12dbi

Front-to-Rear Ratio

>25dB

polarization mode

linear polarization

Input Impedance(Ω)

50

VSWR

<1.5

power capacity(W)

500

Interface

N

Lightning protection

DC ground

Dimension

445*445*42

Weight

4.25kg

Radome Material

ABS/glass reinforced plastic

Weight of Mounting Kits

0.5kg
