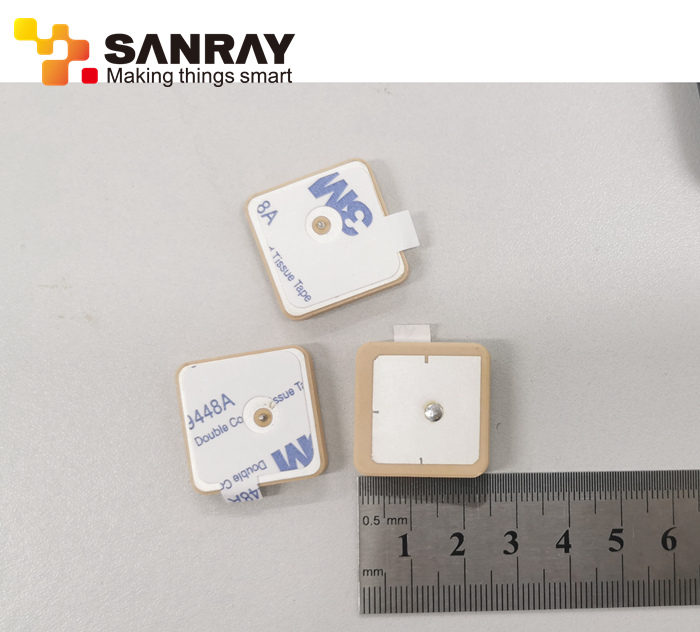

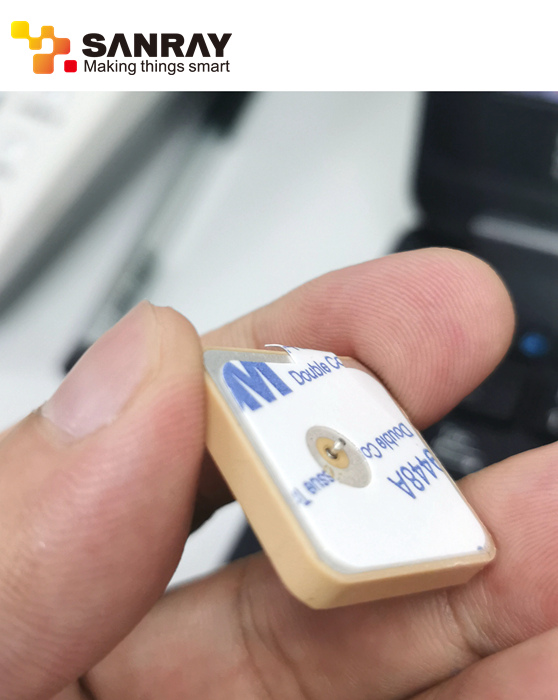

Passive UHF RFID Reader Ceramic Patch Antenna A4002

收藏
Product Details

All Kinds of passive uhf rfid reader ceramic antenna with Circular Polarization 902-928 865-868MHz, Small Directional RFID UHF Antennas 1dbi 2dbi 3dbi, and 5dbi SMA



Parameters

Electrical Characteristics

Antenna



1

Antenna model

A4001(35mm*35mm*4mm)

2

Frequency Range

868MHz±2MHz

3

V.S.W.R

<2.0

4

Band With@10dB

≥10MHz

5

Gain

1.5dBi @40mm*40mm ground plane

6

Impedance

50Ω

7

Polarization

RHCP

Material

No

Part Name

SPEC

1

Antenna

Dielectric Ceramics

2

PCB

FR4

4

RF Cable

RF1.13

L=105mm



5

RF Connector

IPEX Ⅰ

 Environment Condition

1

Working Temp

-40℃~+85℃, 10%~95% RH

2

Storage Temp

-55℃~+100℃, 10%~95% RH

3

Vibration

Sine sweep @1.5mmAM

10~55Hz  each  Axis
