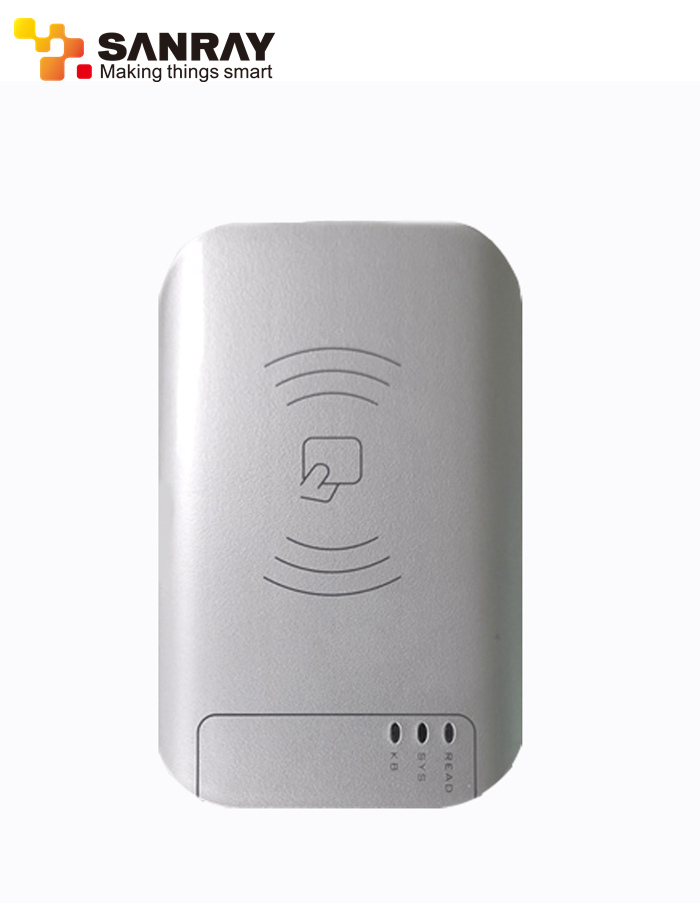

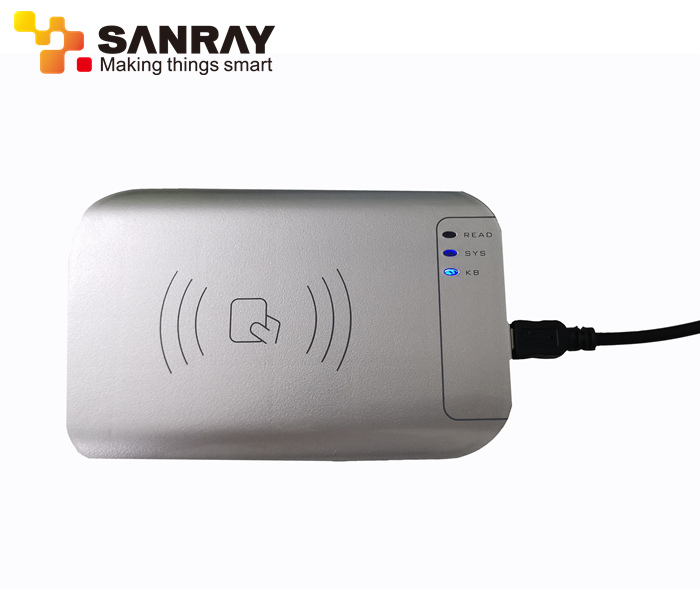

Usb Desktop Uhf Rfid Reader F5001

1

Working   Voltage

USB   5V

2

Working   Temperature

-25～+65℃

3

Working   Humidity

≤95%（+25℃）

4

Storage   Temperature

-40～+80℃

5

Tag   Protocol

EPCglobal   UHF Class 1 Gen 2 / ISO 18000-6C

6

Working   Frequency

840--960   MHz

7

Supporting Working

Areas

China   1, China 2

US,   Canada and other regions following U.S. FCC

Europe   and other regions following ETSI EN 302

208   with & without LBT regulations

Japan

Korea

Malaysia

Taiwan

8

Output   Power

Software   adjustable, step interval 1.0dB, maximum +25dBm

9

Output   Power Flatness

±0.2dBm

10

Receiving   Sensitivity

-60dBm

11

RF Port Standing Wave

≤1.5

12

Reading   Range

Maximum 0.5m (relate to tags type, transmitted power and application   environment)

13

Writing   Range

Maximum 0.2m (relate to tags type, transmitted power and application   environment)

14

Interface   Communication Rate

115200bps

15

Working Temprature

Detection

Support

16

RSSI

Support

17

Antenna Type

-1dBi ceramic antenna

18

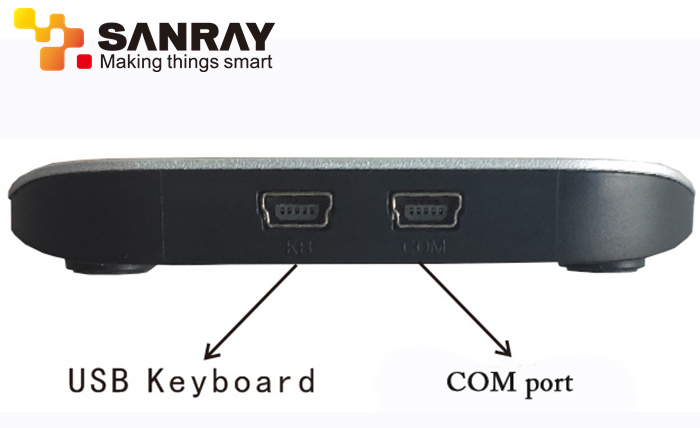

Communication Port

USB

19

Buzzer

Yes

20

LED

Red（power indicator）

Green（status indicator）

21

Enclosure

plastic case

22

Size

130*82*11MM
