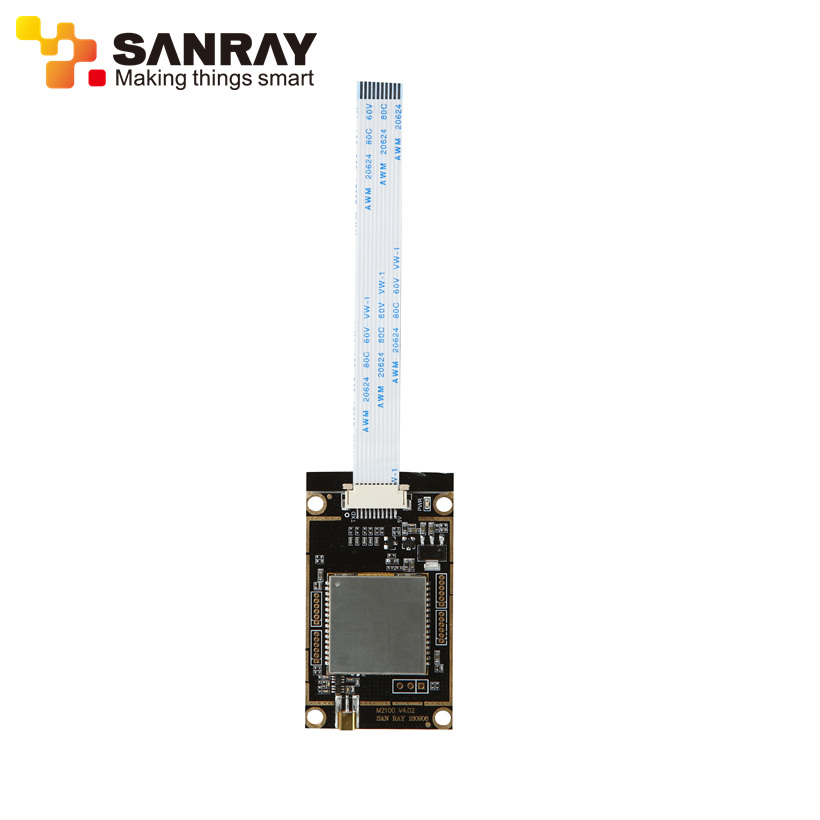

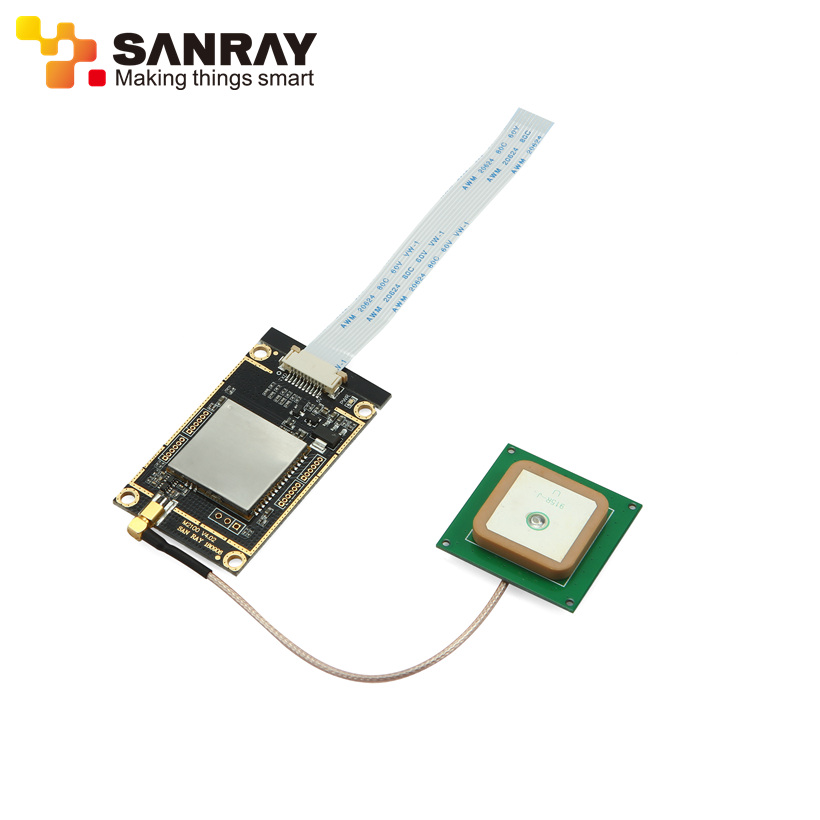

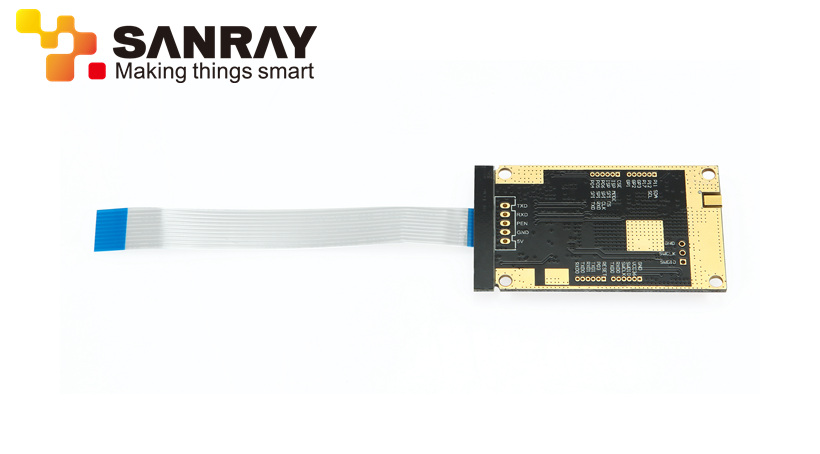

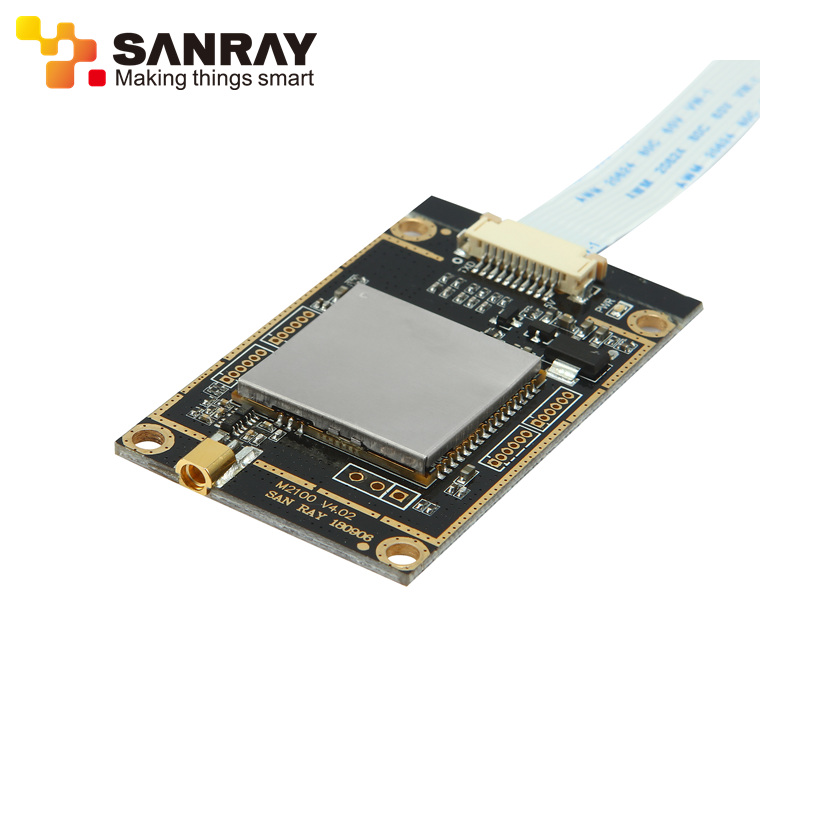

Mini ISO18000-6C passive UHF RFID reader Module M2100

商品说明

Low power consumption, brilliant performance.
Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.

Read distance with 4m above. (Tested with Impinj E41b inlay and 2dbi Antenna, 8dBi circular polarization panel antenna>8m, 12dBi Linear polariztion antenna>15m, multi-tag read ability>50 tags, tag read speed>50 tags/s
Stable performance with less affected by rising temperature.
Super low power consumption; no additional cooling devices required.
Good consistency in terms of RF parameters.
Simple peripheral circuit design(refer to 4-1: circuit design reference)

商品参数

M2100 Moudle Parameter:

Operating voltage	DC 3.5V – 5 V
Standby current	<80mA (EN Feet high level)
Sleeping current	<100uA (EN Feet low level)
Operating current	260mA @ 3.5V (26 dBm Output,25°C). 110mA @ 3.5V (18 dBm Output,25°C).
Starting time	<100mS.
Operating temperature	- 20 °C - + 70 °C
Storage temperature	- 20 °C - + 85 °C
Operating humidity	< 95% ( + 25 °C)
The air interface protocol	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Work spectrum range	902Mhz – 928Mhz 865MHz – 868MHz(Optional)
Working area support	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China Japan, Korea, Malaysia, Taiwan
Output Power Range	18-26 dBm
Output power precision	+/- 1dB
Output power flatness	+/- 0.2dB
Output RFID connector	I-PEX
Receiving sensitivity	< -70dBm
Peak speed of inventory tags	> 50tags/Second
Label buffer	200 PC labels @ 96 bit EPC
Tag RSSI	support
Communication interface	TTL Uart interface Wigan 26 Wigan 34
GPIO	Two route enter two route output (3.3 V level)
Communication baud rate	115200 bps(Default and recommended) 38400bps
heat-dissipating method	Air cooling (Without extern set heat sink)
