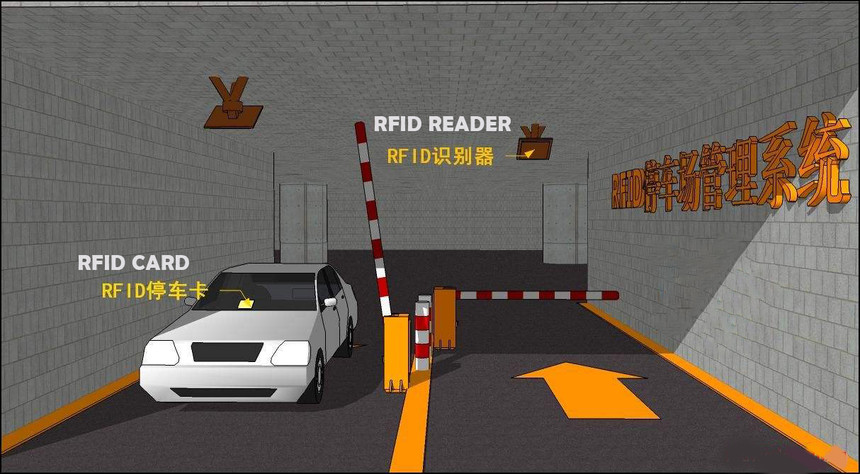

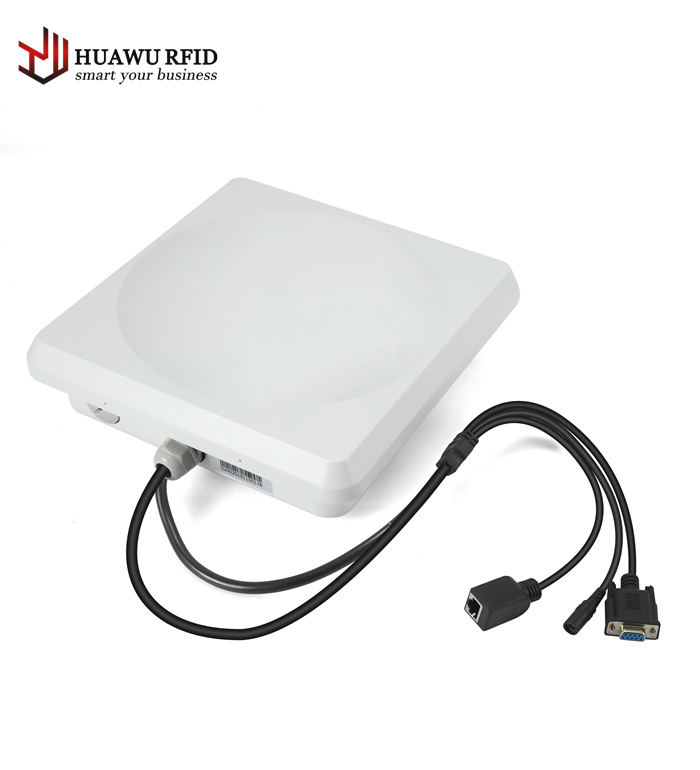

Sanray parking vehicle access control long range uhf rfid reader HW5019

Performance Index

Frequency range

902-928MHZ(or customized)

FM mode

FHSS or fixed frequency, set by the software

RF output

30dBm adjustable;50Ω load

Communication interface

RS232,RS485,Wiegand26/34(TCP/IP)

Communication rate

Serial port 9600~115200bps,RJ45 10Mbps

GP I/O interface

12 pin + 4 pin

Power dissipation

average<10W

Application software

Provide with API SDK and VC, VB, Java application routines

Tag Operation Performance

Reading distance

6~10m equipped with 9dbi antenna(tag dependent)

Air interface

EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B

Mechanical and Electrical Performance

Dimension

306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring)

Power supply

Equipped with power convertor 220V AC input, +9V/3A DC output

Weight

2.6Kg

Installation

Embrace rod mounting

Diameter of support rod

40-50mm

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP65

Operation temperature

-20 oC to +60  oC
