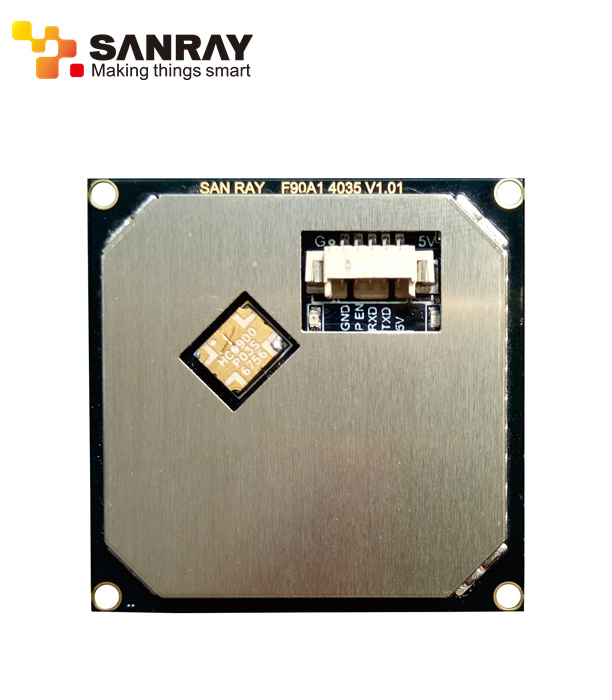

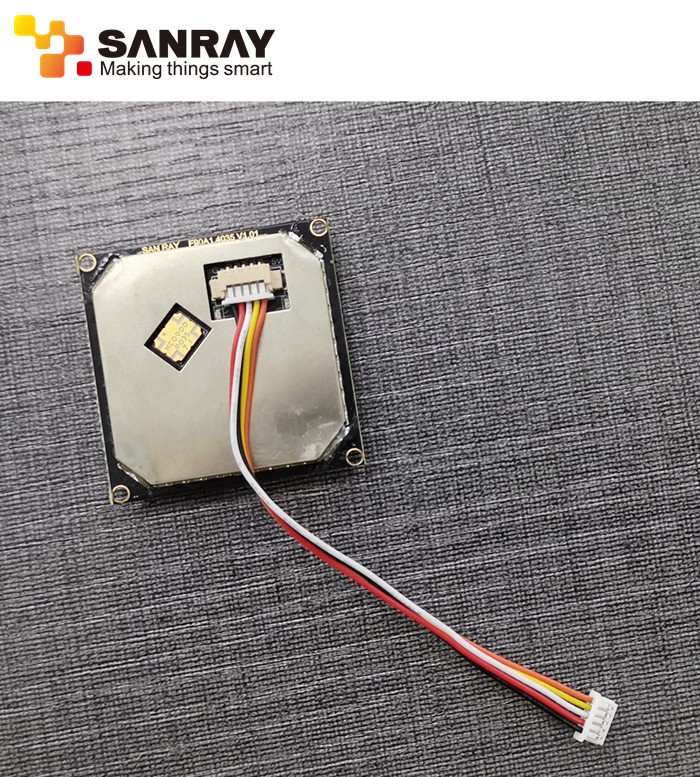

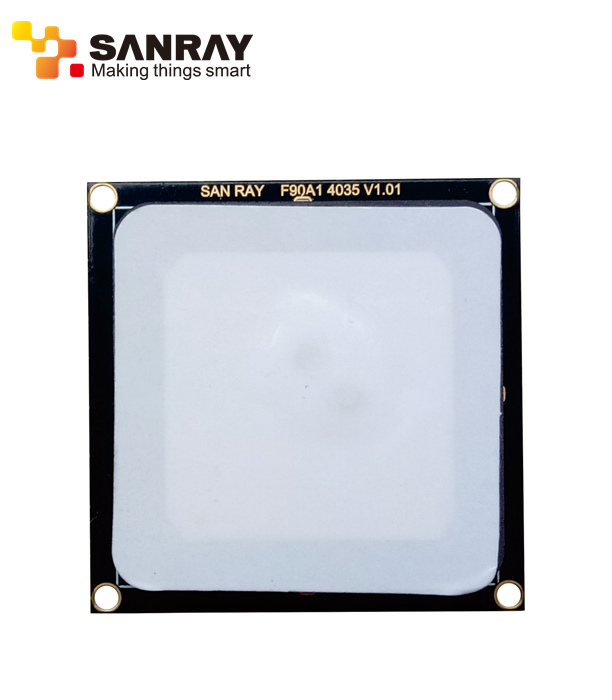

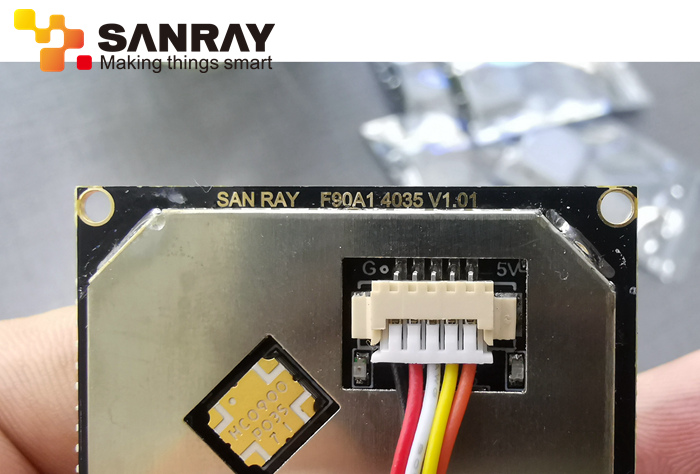

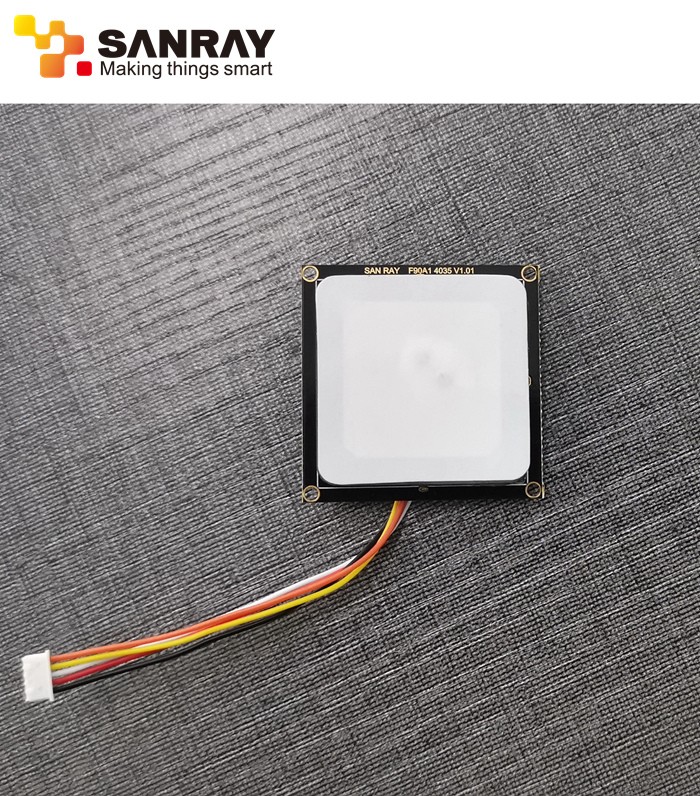

Integrated Passive UHF RFID reader Module with ceramic antenna F2101

F2101 is a high performance UHF RFID integrated module. max reading up to 5M and multi reading of 100tags/second. it's very ideal for hardware development for handheld reader and mobil readers.

Features

1.      Self-intellectual property;

2.      Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3.      865~868MHz, 902~928MHz frequency band(frequency customization optional);

4.      FHSS or Fix Frequency transmission;

5.      RF output power up to 30dbm(adjustable);

6.      effect distance: 8dbi antenna with 3m-5m*; 12dbi antenna with 12m-15m

7.      Support auto-running, interactive and trigger-activating work mode;

8.      Low power dissipation with single +9V DC power supply;

9.      Support :RS232, RS485, Wiegand interface;

Effective distance depends on antenna, tag and environment.

Characteristics

1. Absolute Maximum Rating

1. Electrical and Mechanical Specification

Under TA=25℃,VCC=+12V unless specified

 Interface
