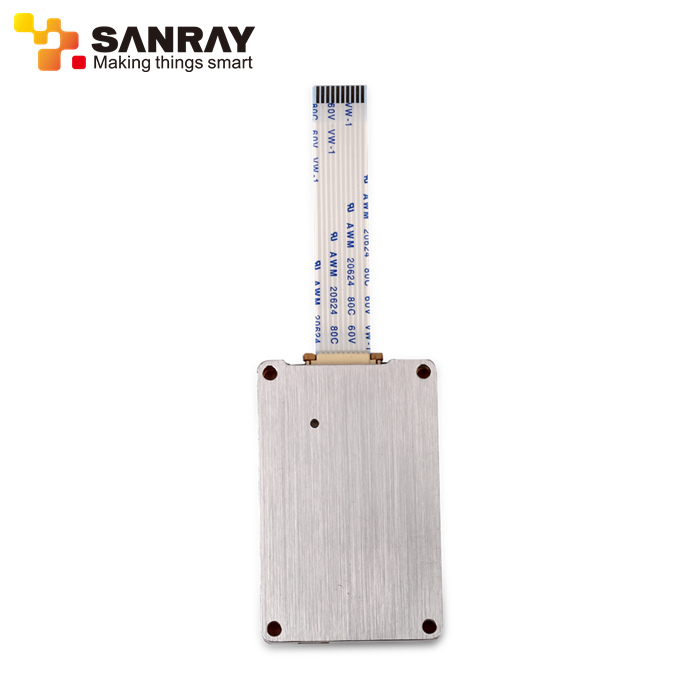

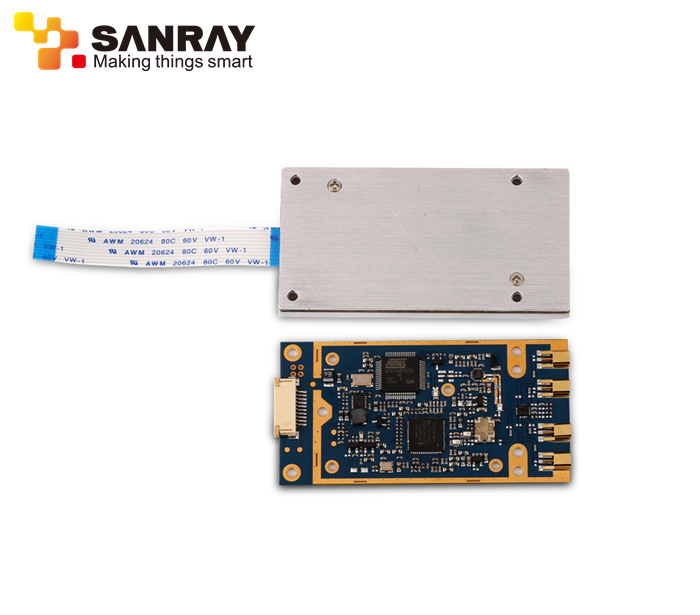

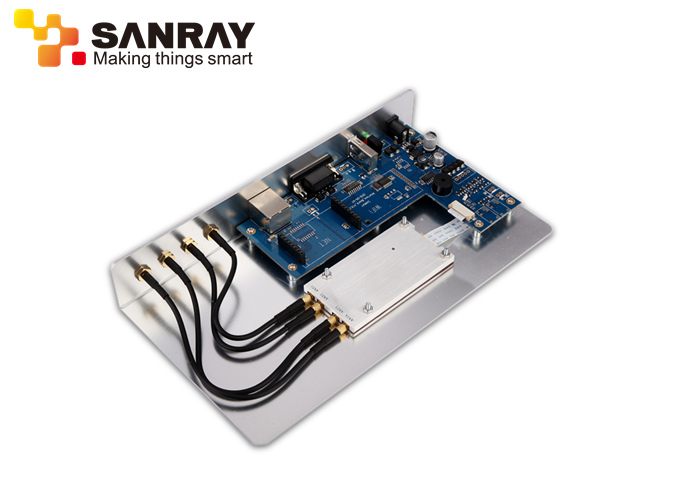

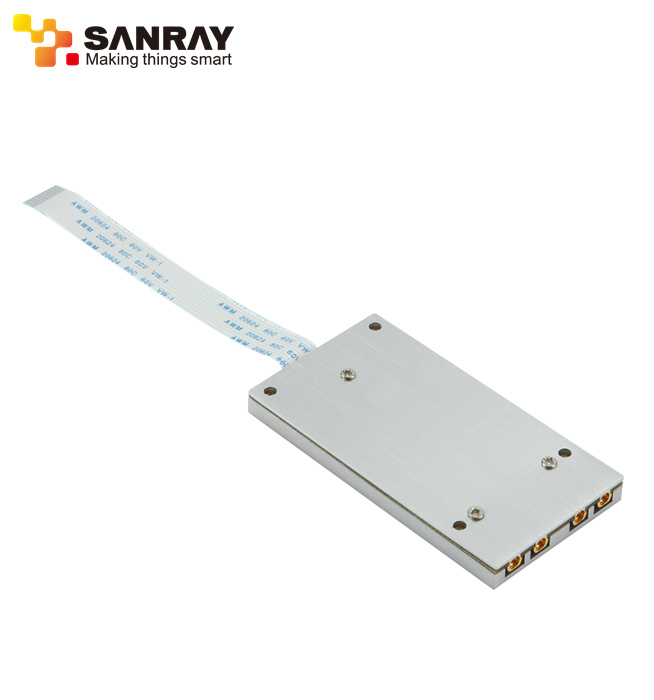

Impinj R2000 Module 4 Ports Channel UHF rfid module M2240

1

Working Voltage

DC 5.0V

2

Working Current

≤1.5A

3

Standby Current

≤50mA

4

Sleep Current

≤1mA

5

Working Temperature

-25 -- +65℃

6

Working Humidity

≤95%(+25℃)

7

Storage Temperature

-40 -- +80℃

8

Tag Protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

9

Working Frequency

840～960 MHz

10

Supporting Working

Areas

China 1, China 2

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302

208 with & without LBT regulations

Japan

Korea

Malaysia

Taiwan

11

RF IC

Impinj R2000

12

Output Power

Software adjustable, step interval 1.0dB, maximum 30dBm

13

Output Power Flatness

±0.2 dBm

14

Receiving Sensitivity

≤-110 dBm

15

RF Port Standing

Wave

≤1.5

16

Maximum Reading

Distance

≥10m (With 8dBi antenna/Relate to tags type, transmitted power and application environment)

17

Multi-tag Reading

≥400 tags/s

18

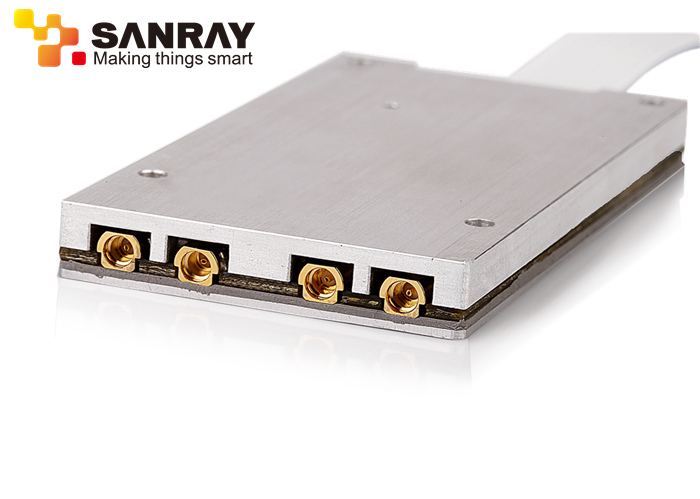

Antenna Interface

Amount

Four (MMCX)

19

Interface

Communication Rate

115200 bps

20

Working Temprature

Detection

support

21

Intensive Read/Write

Mode DRM

support

22

Antenna Connection

Protection

support

23

RSSI

support

24

LED

Red light (power indicator )

25

Product Cooling Way

Aluminum metal case as cooling fin for the module

26

Dimension

76.4*40.3*7.0MM

1

NA

-

This Pin Must to Be Flaot

2

NA

-

This Pin Must to Be Flaot

3

UART_TX

I/O

TTL UART Transmit

4

UART_RX

I/O

TTL UART Receive

5

GPIO3

I/O

Output

6

GPIO2

I/O

Output

7

GPIO1

I/O

Output

8

PWREN_MODULE

I/O

When Pull Down This Pin to Ground,The Module Enter Sleeping Mode.

9

GND

Ground

Ground

10

11

VCC

Power

DC 5V Power Input.

12
