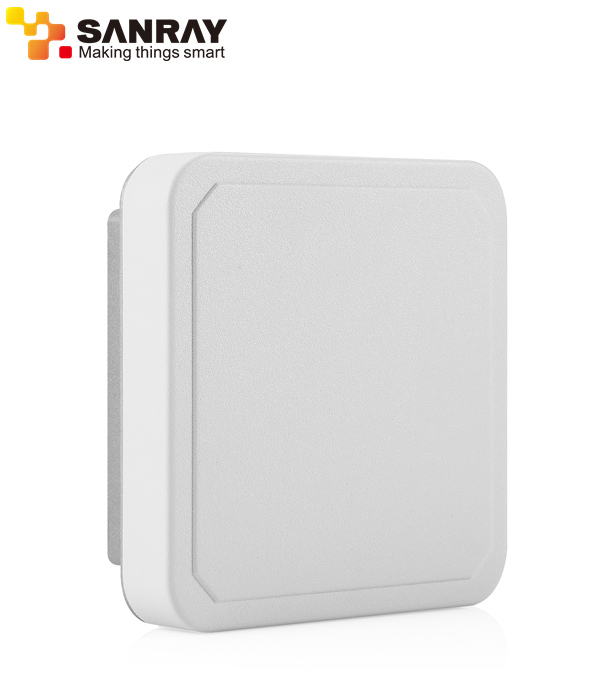

Small Rugged 6db UHF RFID Reader F5006

Sanray 6DB  Entry UHF RFID Card Reader

ideal for vehicle and cars parking lot and access control purpose.

Introduction:

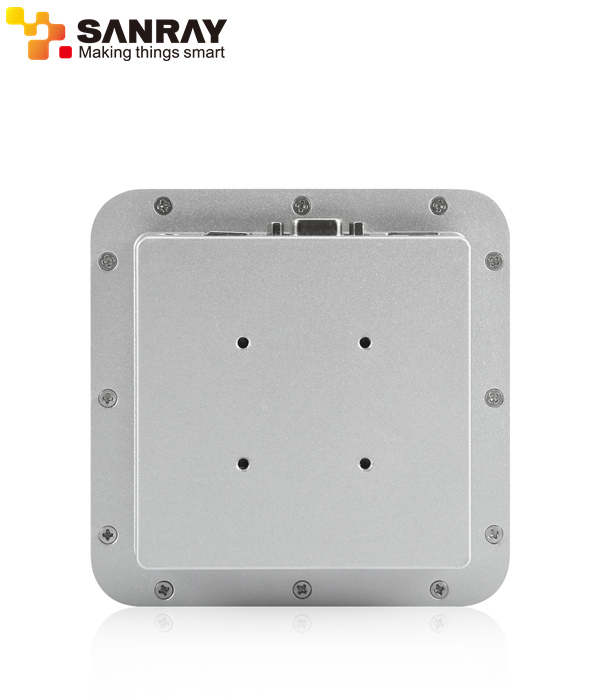

Adopt High-strength die-casting aluminum shell,IP-67 protection rating

Adopt high-performance Impinj UHF reader chip IndyR2000 and TI ARM Embedded processing chip achieve stable operation of the multi-lane free flow by Tag read sensitivity and Collaborative professional algorithm

Application: Intelligent transportation, Port and dock vehicle management and outdoor harsh environment

Features:

1. Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation

2. Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C standard

3.operating frequency is between 860-868MHZ / 902- 928MHZ (can be adjusted according to different countries or regions)

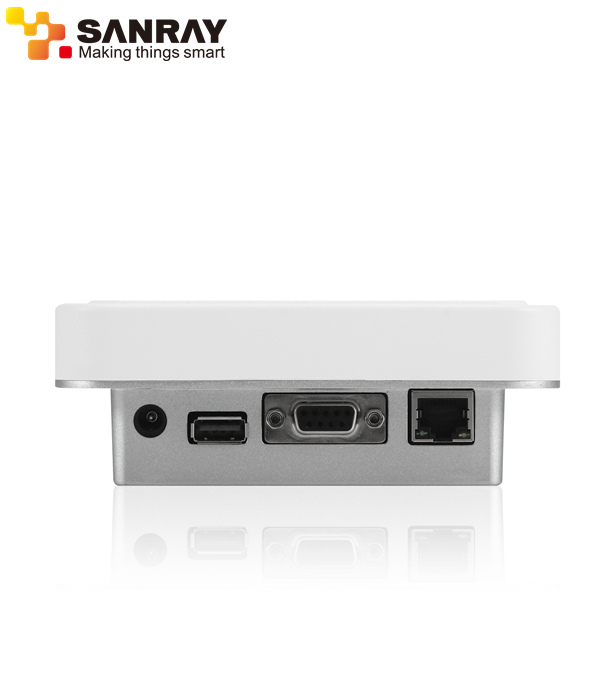

4.Support RS232, RS485 and TCP / IP communication interface etc.

5.Support 1, 2, 4 external SMA antenna connections

6.Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.

7.Reading buzzer and LED status indication; support online upgrade for hardware by communication port.

8.Reader supply multi I/O input output connectors, convenient for device to integrate and application

9.High reliable design for industrial structure to meet the demanding work environment

Product Electrical Parameters
