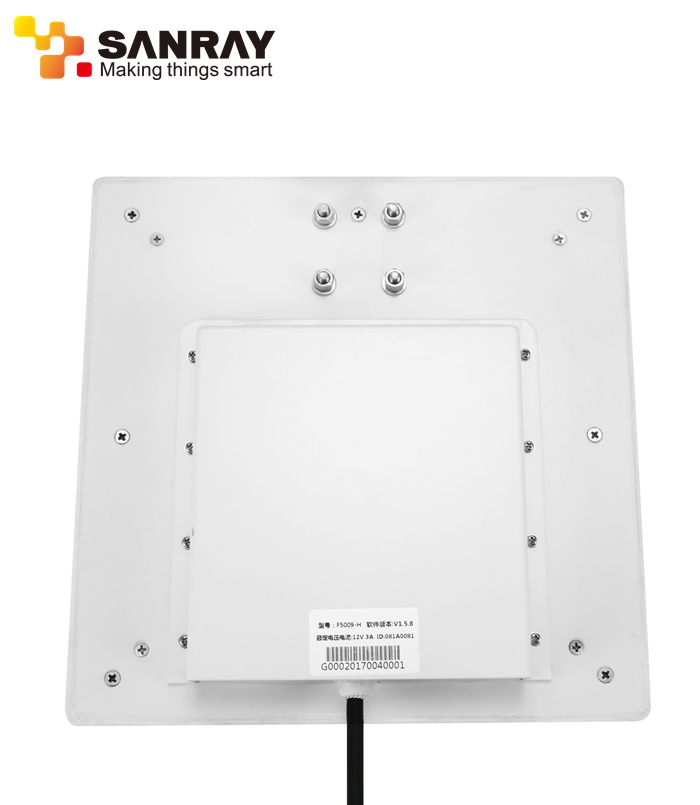

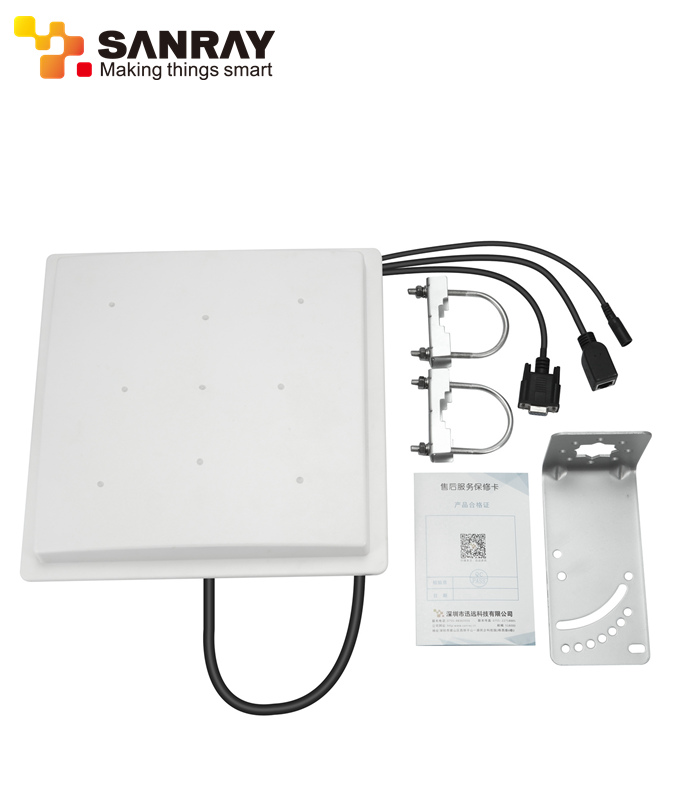

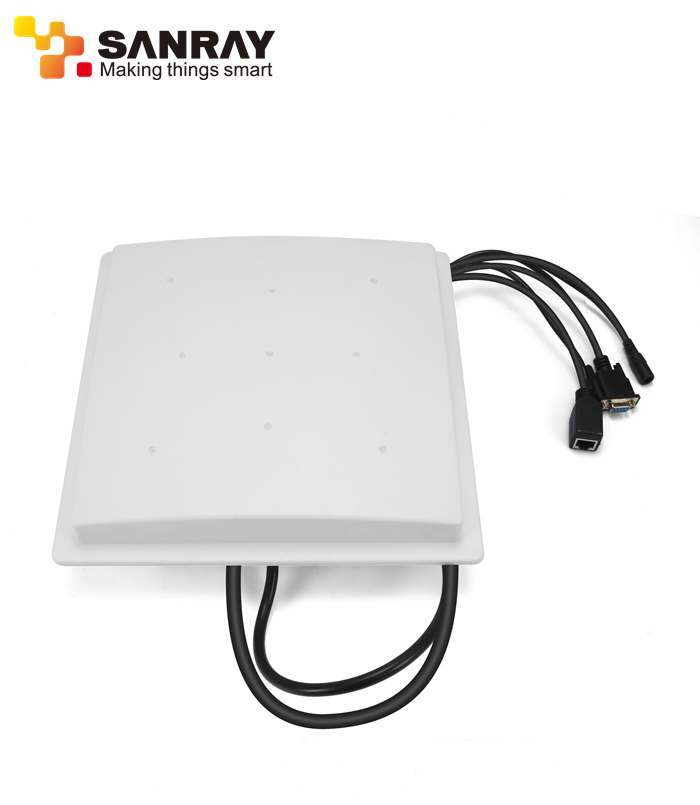

Long Range passive UHF rfid Card Reader for vehicle control F5009

1

Working Voltage

DC +12V

2

Working Temperature

-25～+65℃

3

Working Humidity

≤95%（+25℃）

4

Storage Temperature

-40～+80℃

5

Tag Protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

6

Working Frequency

840～960 MHz

7

Supporting Working

Areas

China 1, China 2

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302

208 with & without LBT regulations

Japan

Korea

Malaysia

Taiwan

8

Output Power

Software adjustable, step interval 1.0dB, maximum +30dBm

9

Output Power Flatness

±0.2dBm

10

Receiving Sensitivity

-82dBm

11

RF Port Standing Wave

≤1.5

12

Reading Distance

≥30m（relate to tags type, transmitted power and application environment）

13

Multi-tags Reading

≥400tags/s

14

Interface Communication Rate

115200bps

15

Working Temprature

Detection

Support

16

Intensive Read/Write Mode DRM

Support

17

Antenna Connection

Protection

Support

18

RSSI

Support

19

Antenna Type

Specially designed 9dbi circular polarization antenna

20

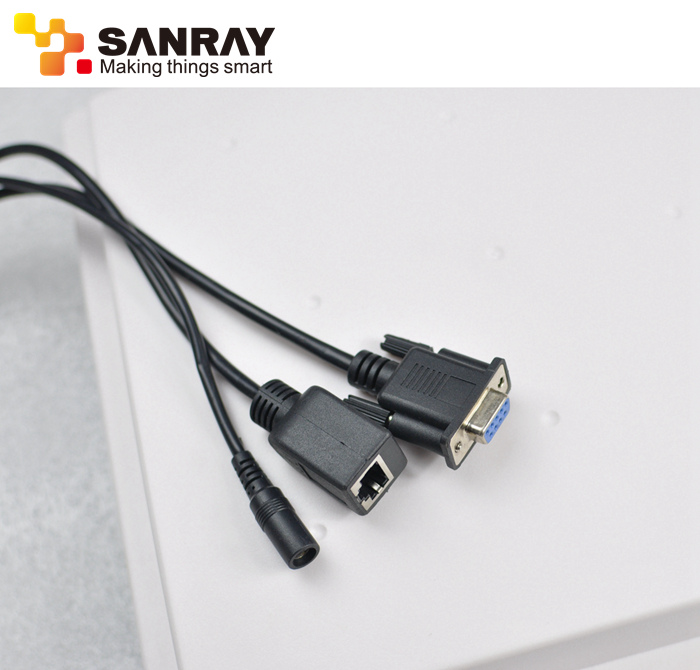

Communication Port

RS485、RS232（DB-9）RJ45（100M Ethernet port）

21

Buzzer

Yes

22

Enclosure

ABS industrial plastic case

23

Dimension

28*28*7.5CM

24

IP Grade

IP65

1

485-A

RS485 A

2

485-B

RS485 B

3

GND

Ground

4

GND

Ground

5

E-6

Ethernet RJ45 PIN6

6

E-3

Ethernet RJ45 PIN3

7

+12V

DC +12 Power supply

8

GND

Ground

9

E-1

Ethernet RJ45 PIN1

10

E-2

Ethernet RJ45 PIN2

11

232-RX

RS232 RX

12

232-TX

RX232 TX
