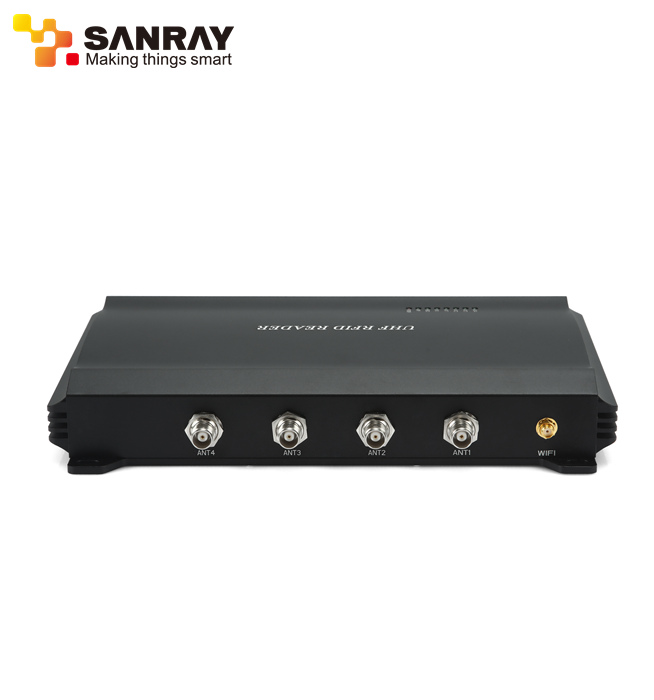

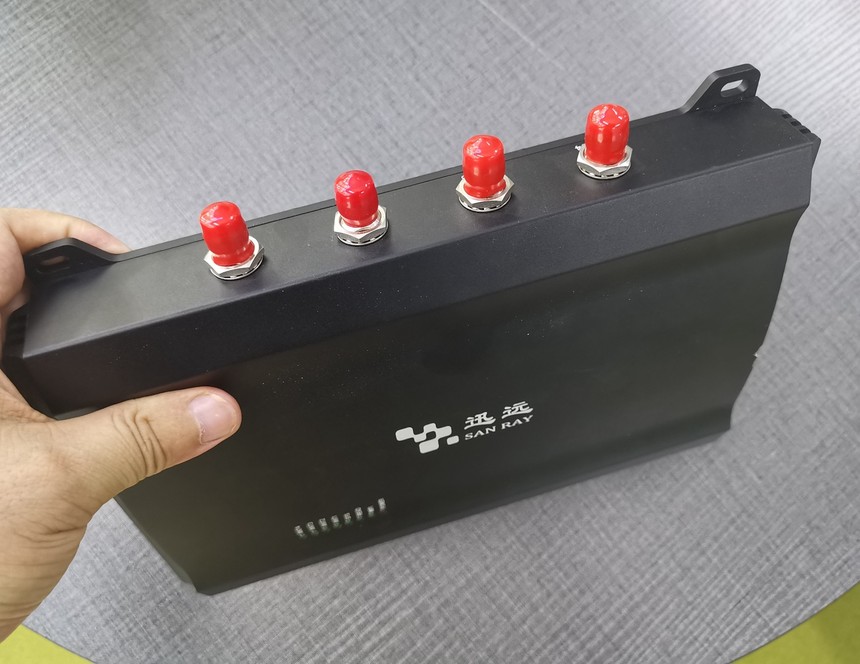

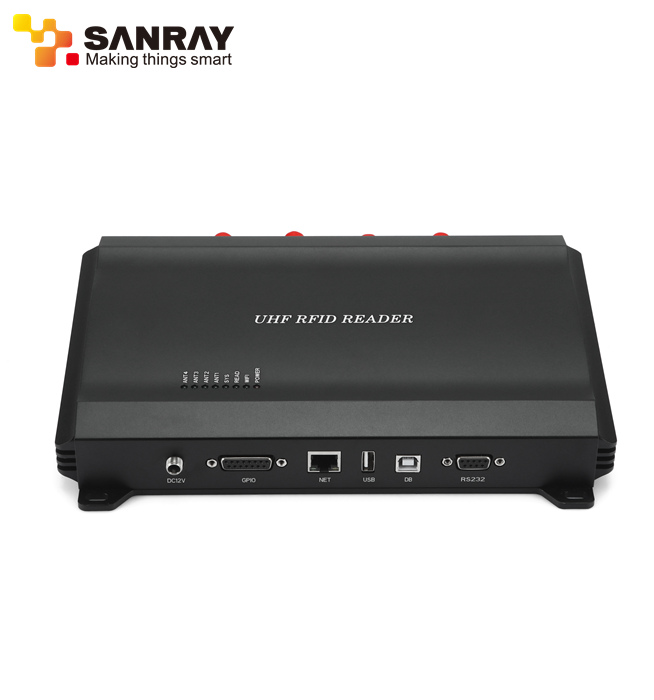

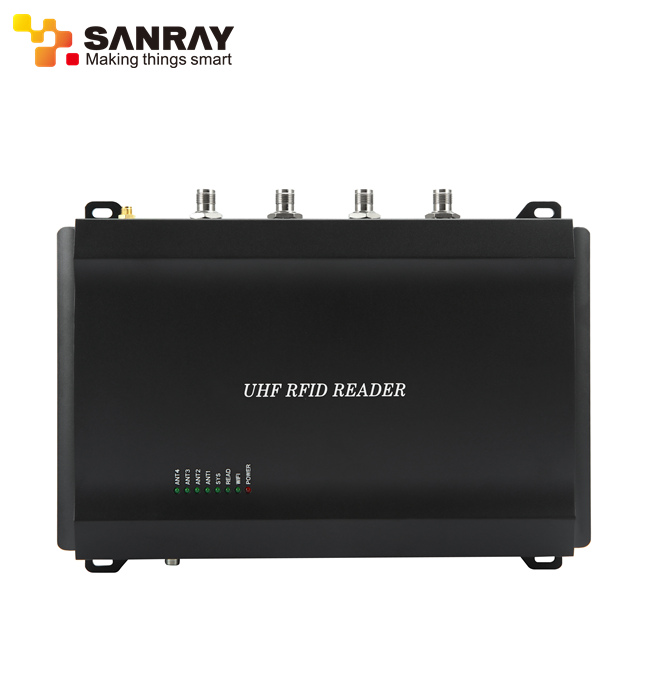

Passive UHF RFID Reader With 4 Antenna Ports F5860

收藏
Product Details

industrial grade metal frame with industrial design EPC global Gen2 (ISO 18000-6C) ethernet port（10/100M), RS232 With Impinj R2000 chipset, 33dbm. 4 port for antenna connection.

UHF RFID Reader with 4 Antenna Ports for Warehouse Inventory and access control.




Parameters
Physical characteritics
Dimensions23.5cm×18.5cm×4.3cm
Net weight2kg
RFID Characteristics
Air ProtocolsEPC Class 1 Gen 2 (ISO 18000-6C)
FrequencyUSA: 902-928MHz FCC (NA, SA)
EU: 865.6-867.6MHz, 869.85MHz
CN: 920-925MHz (CMIIT)
Other customizable: OPEN 840-960MHz
Antenna portsFour 50Ω reverse TNC Connectors
Output Power5dBm-30dBm (±1dBm) adjustable
Work ModeFixed / hop frequency optional
Connector Interfaceethernet port（10/100M), RS232
(Power supply, Communication, GPIO)
ASICImpinj  INDY R2000
RFID Performance
Max Read Rate≥400 tags/s
Tag Read Distance≥10m, 8dbi antenna
Certificates
CertificatesIn processing
Application Interface
Host APIC, C#/.NET, Java
Communication Interface
Communications

USB(A Female)、RS485、RS232（DB-9）and RJ45（100M Ethernet port）

GPIO (Optional)Optional, 2 inputs (DC 0~3.3V), 2 Outputs (DC 0~3.3V)
Power Supply
Input Voltage12V/3A adatper or PoE
Power consumption in RF output mode13.5W (Peak Value)
IndicatorPower indicator, status indicator, built-in buzzer
Working Environment
Operating Temp.-20°C to +55°C
Storage Temp.-20 °C to +60°C
Humidity5-90% non-condensing (+25°C)
