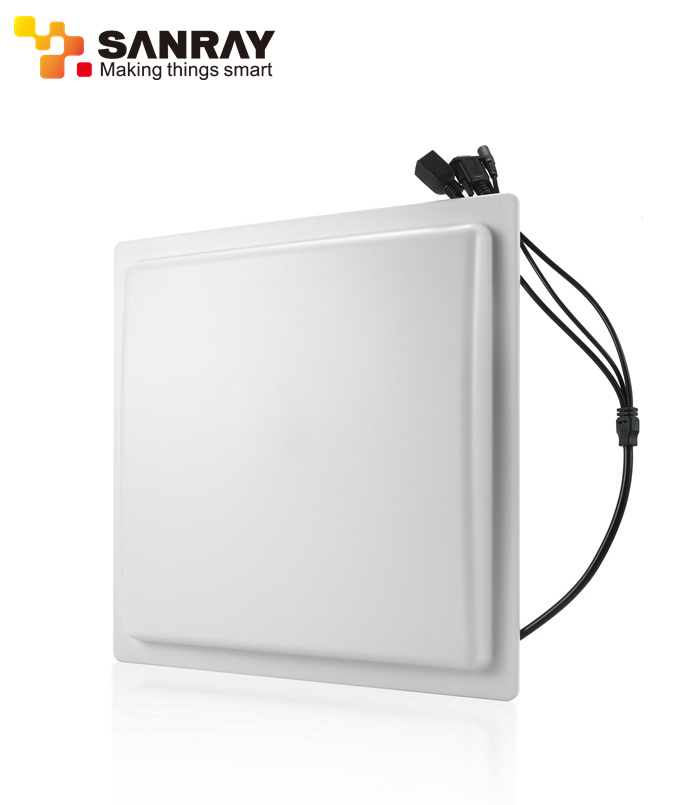

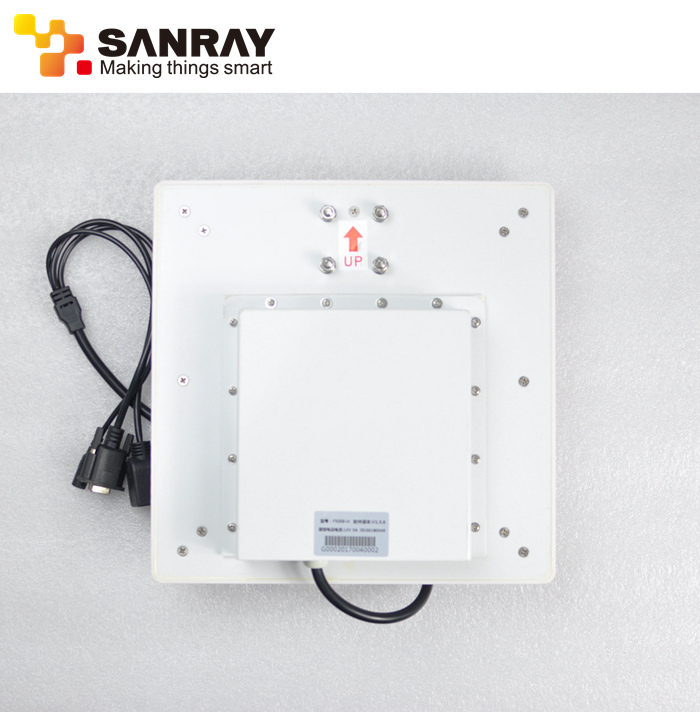

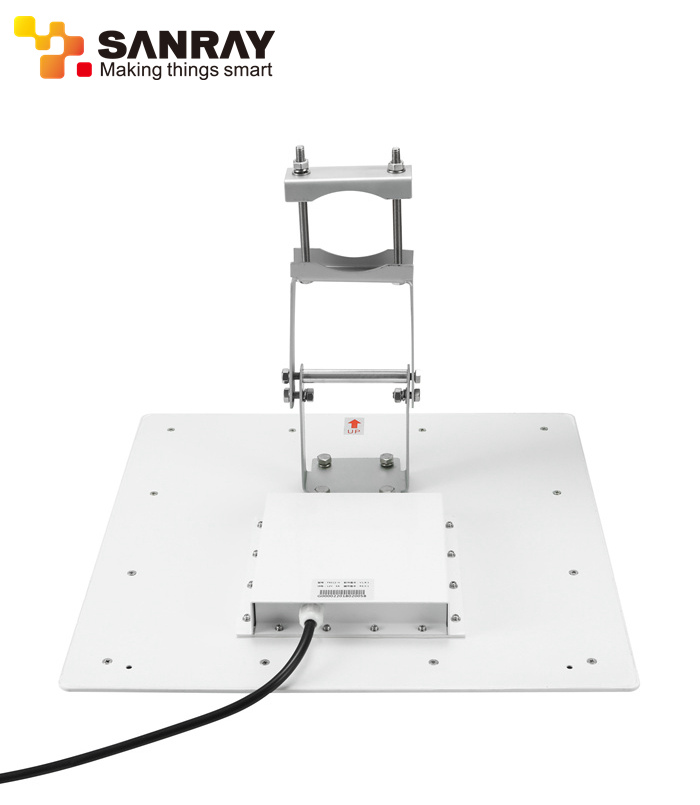

12DBI Passive RFID Reader Vehicle Identification F5012

Product Details

1.Accord with the certification of EPCGLOBAL CLASS 1 GEN 2 UHF RFID protocol of intensive reader mode operation.

2.Accord with the certification of UHF RFID of intensive reader mode operation.

3.Flexible buffering and tag filtered model.

4.Accord with ISO 18000-6C type UHF RFID recognize standard.

5.Could setting data and upload multi tag data.

6.Support all GEN 2 multi-tag identification instructions.

Parameters

Product Electrical Parameters

NO.	Name	Parameters
1	Working Voltage	DC +12V
2	Working Temperature	-25～+65℃
3	Working Humidity	≤95%（+25℃）
4	Storage Temperature	-40～+80℃
5	Tag Protocol	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
6	Working Frequency	840～960 MHz
7	Supporting Working Areas	China 1, China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Japan，Korea，Malaysia，Taiwan
8	Output Power	Software adjustable, step interval 1.0dB, maximum +30dBm
9	Output Power Flatness	±0.2dBm
10	Receiving Sensitivity	-82dBm
11	RF Port Standing Wave	≤1.5
12	Reading Distance	≥14m（relate to tags type, transmitted power and application environment）
13	Multi-tags Reading	≥400tags/s
14	Interface Communication Rate	115200bps
15	Working Temprature Detection	Support
16	Intensive Read/Write Mode DRM	Support
17	Antenna Connection Protection	Support
18	RSSI	Support
19	Antenna Type	12dbi linear polarization antenna

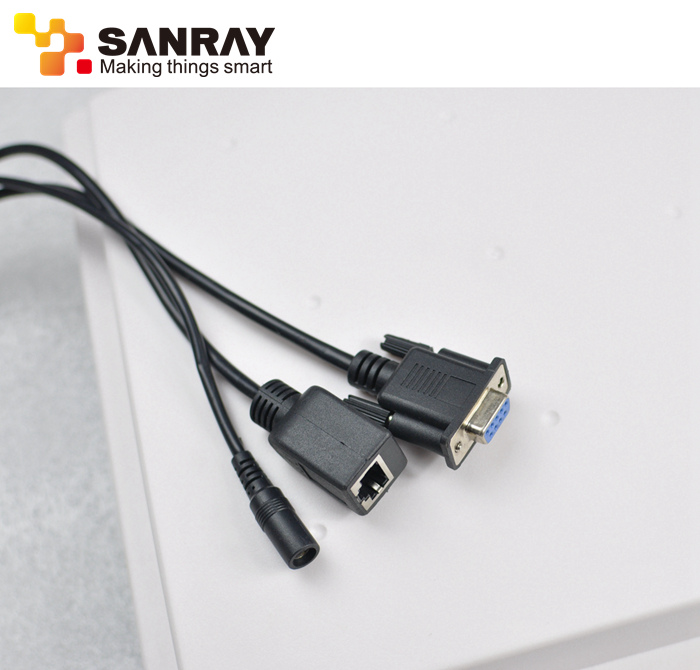

20	Communication Port	RS485、RS232（DB-9）RJ45（100M Ethernet port）
21	Buzzer	Yes
22	Enclosure	ABS industrial plastic case
23	Dimension	44.544.57.5CM
24	IP Grade	IP64

Interface definition
