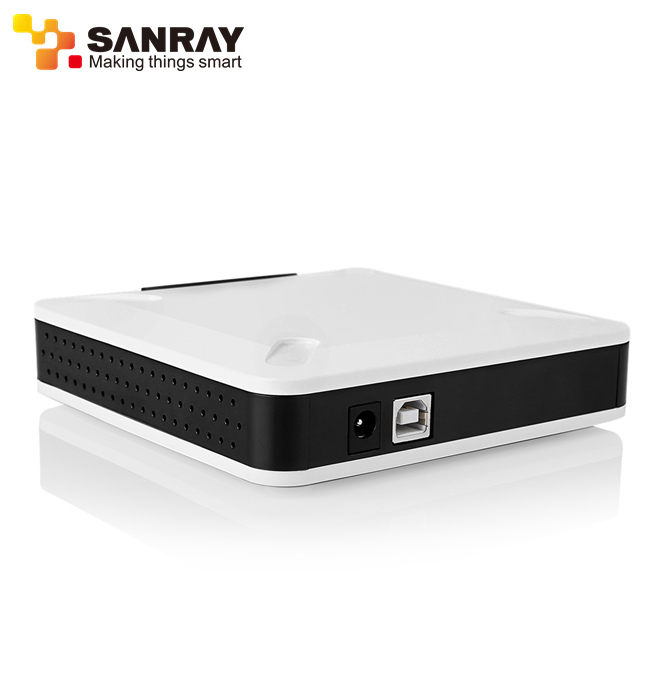

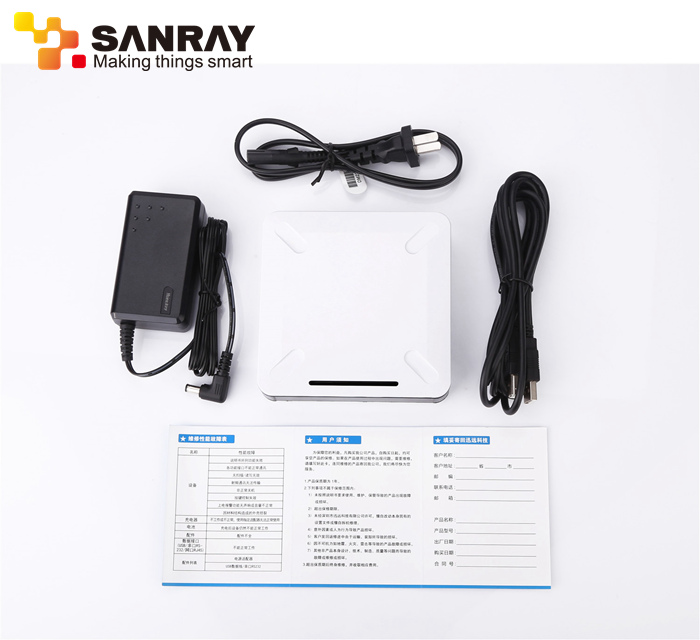

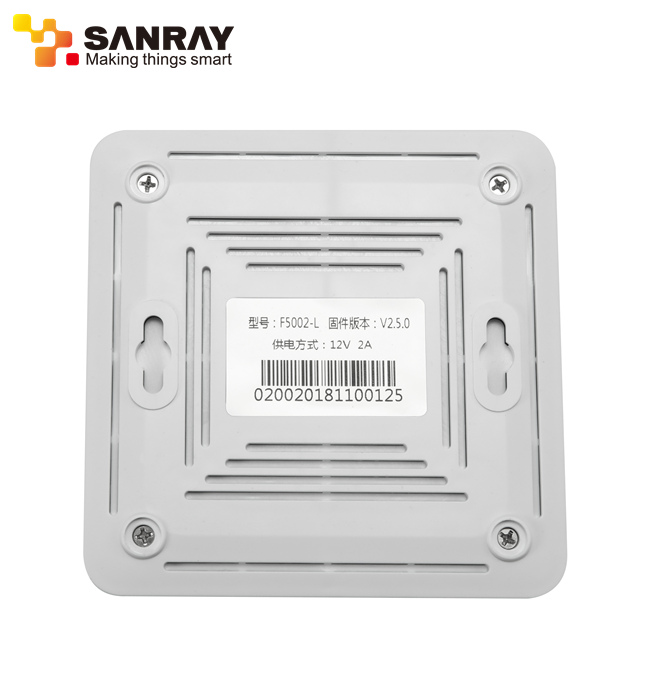

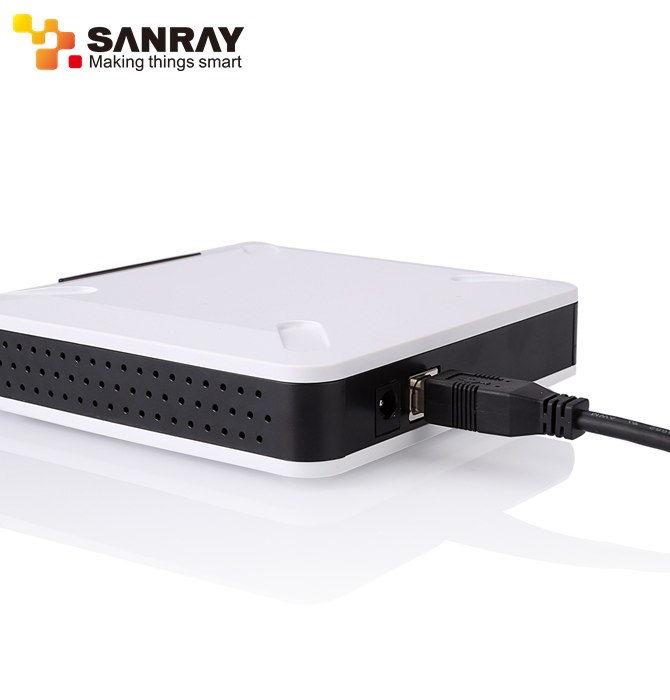

Desktop USB UHF RFID EPC GEN 2 Tag Reader and Writer F5002

收藏
Product Details


Product Advantage

1. Employed M2100 RF Chips, up to -60dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.

2. Low power consumption, brilliant performance.

3. Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.

4. Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.

5. The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.

6. Enhanced noise suppression function for reliable data capturing.

7. High precision return signal strength (RSSI).

8. Excellent performance of anti-interference

9. Plastic case, small and portable, rugged and durable.




Parameters

2. Product Electrical Parameters

NO.

Name

Parameters

1

Working Voltage

DC +12V

2

Working Temperature

-25~+65℃

3

Working Humidity

≤95%(+25℃)

4

Storage Temperature

-40~+80℃

5

Tag Protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

6

Working Frequency

840--960 MHz

7

Supporting Working

Areas

China 1, China 2

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302

208 with & without LBT regulations

Japan

Korea

Malaysia

Taiwan

8

Output Power

Software adjustable, step interval 1.0dB, maximum +25dBm

9

Output Power Flatness

±0.2dBm

10

Receiving Sensitivity

-60dBm

11

RF Port Standing Wave

≤1.5

12

Reading Range

Maximum 0.5m (relate to tags type, transmitted power and application environment)

13

Writing Range

Maximum 0.2m (relate to tags type, transmitted power and application environment)

14

Interface Communication Rate

115200bps

15

Working Temprature

Detection

Support

16

RSSI

Support

17

Antenna Type

-1dBi ceramic antenna

18

Communication Port

USB

19

Buzzer

Yes

20

LED

Red(power indicator)

Green(status indicator)

21

Enclosure

plastic case

22

Size

12.0*12.0*3.0CM
